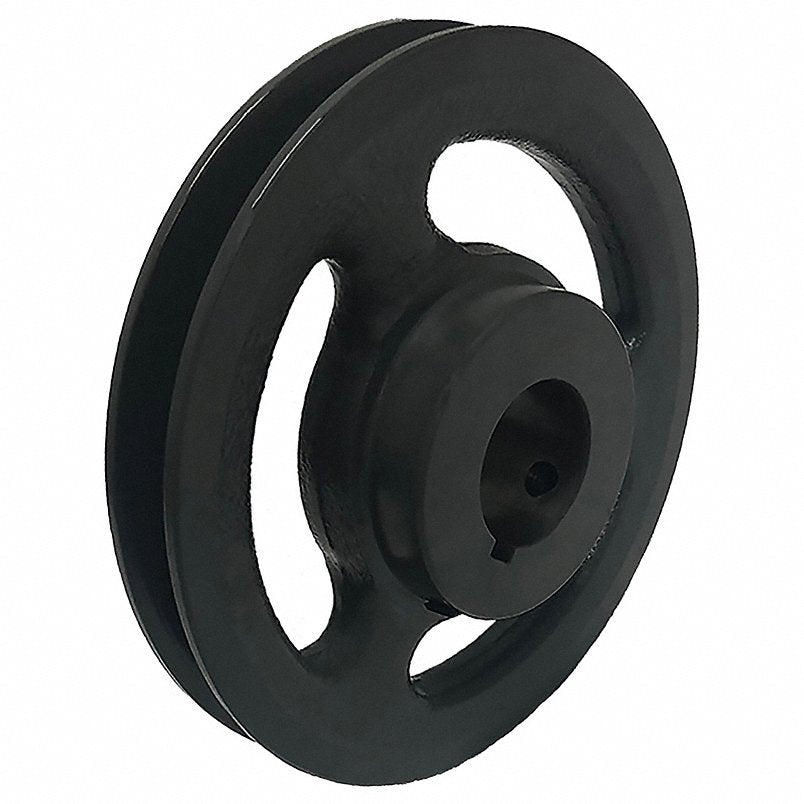

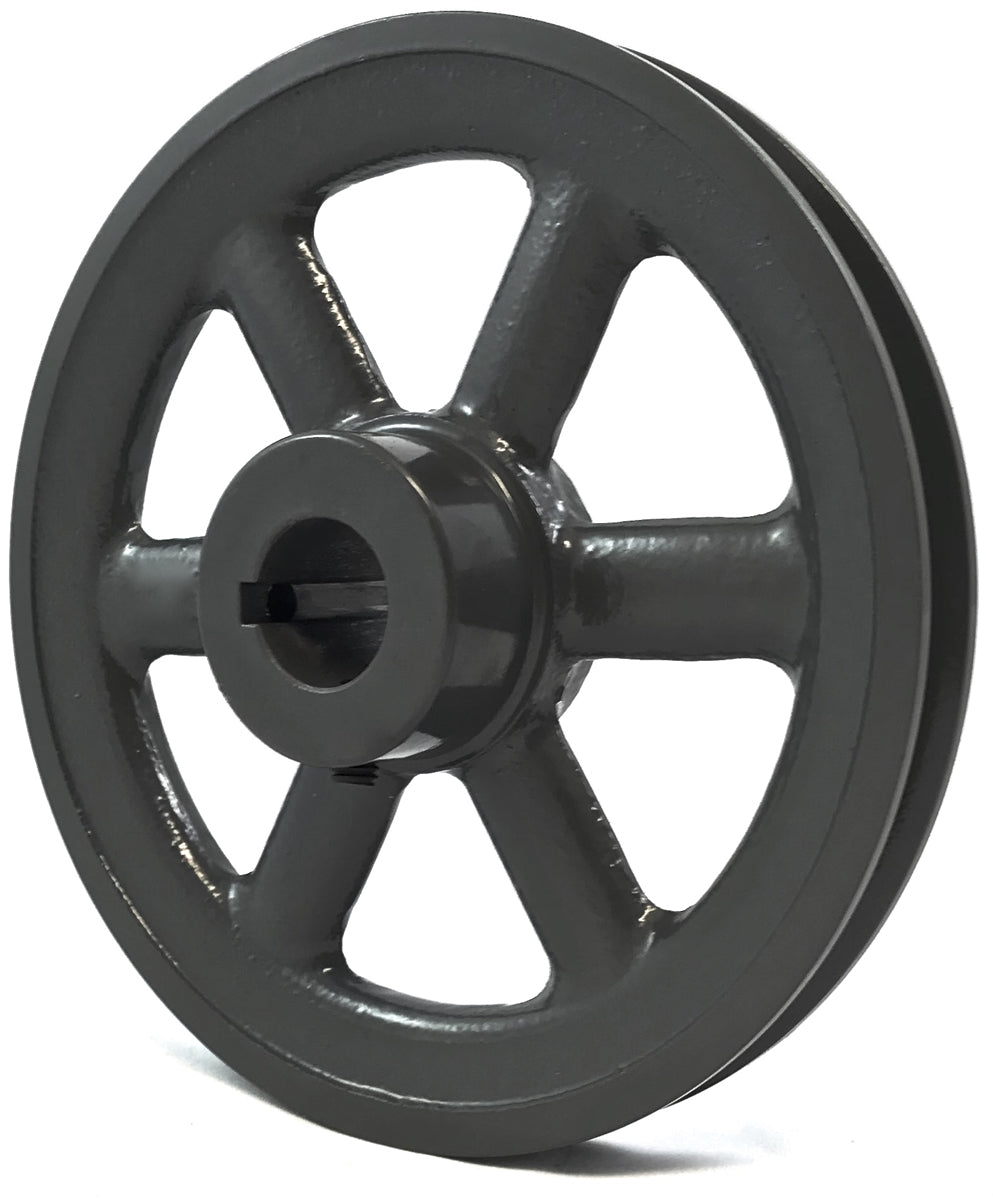

Precision Electric Motor Sales AK56-1 AK56 Pulley with 1-1/8 Bore

Product Description

The Precision Electric Motor Sales AK56-1 is an AK56 pulley designed for efficient performance. It comes with a bore size of one and one-eighth inches, making it compatible with various manufacturers’ pulleys. The overall diameter is five point four five inches. This pulley works effectively with A style V-Belts and meets ARPM Standard IP20 specifications.

• Bore Size: 1-1/8 inches
• Outside Diameter: 5.45 inches
• Manufactured per ARPM Standard IP20

Product Highlights

The pulley is made from grade 35 cast iron and features a phosphate coated and painted finish. It is dynamically balanced to ensure stability during operation, which is essential for various mechanical applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• UPC:

Technical Specifications

• Pulley Size: AK56
• Outside Diameter (O.D.): 5.45 inches
• Pitch Diameter for 4L/A Belts (P.D.): 5.20 inches
• Pitch Diameter for 3L Belts (P.D.): 4.86 inches
• Pulley Type: 3
• Bore Size: 1-1/8 inches
• Key-Way Size: 1/4 x 1/8 inches
• Dimension (F): 3/4 inches
• Dimension (L): 1-5/32 inches
• Dimension (P): 15/32 inches
• Dimension (C): 1/16 inches
• Weight: 1.9 lbs
