Precision Electric Motor Sales AK46-1 Pulley

Product Description

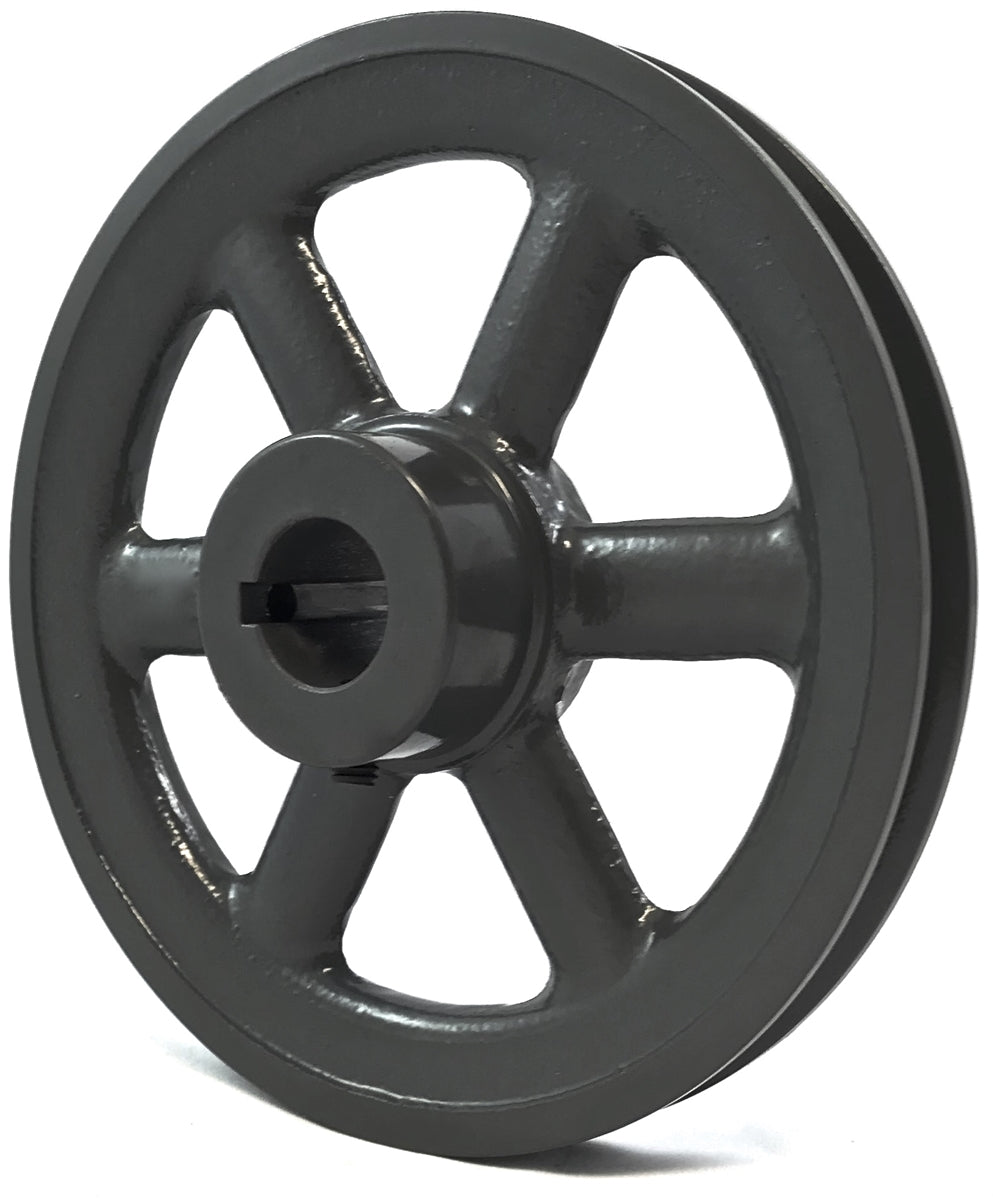

The Precision Electric Motor Sales AK46-1 is a pulley featuring a one-inch bore. It is compatible with A style V-Belts and is designed for reliable performance. The outside diameter of this pulley measures four point four five inches. It meets the ARPM standard IP20 and is made from grade thirty-five cast iron, ensuring durability. The pulley comes with a phosphate coated and painted finish for added protection. It is also dynamically balanced for optimal function.

• 1 Bore Size
• Compatible with A style V-Belts
• Dynamically balanced

Product Highlights

This pulley provides robust support for various belt-driven applications.

Product Information

Standard Information

• Manufacturer: Precision Electric Motor Sales
• MPN: AK46-1

Technical Specifications

• Pulley Size: AK46
• Outside Diameter (O.D.): 4.45 inches
• Pitch Diameter for 4L/A Belts (P.D.): 4.20 inches
• Pitch Diameter for 3L Belts (P.D.): 3.86 inches
• Pulley Type: 3
• Bore Size: 1 inch
• Key-Way Size: 1/4 x 1/8 inches
• Dimension (F): 3/4 inches
• Dimension (L): 1-5/32 inches
• Dimension (P): 15/32 inches
• Dimension (C): 1/16 inches
• Weight: 1.5 lbs
