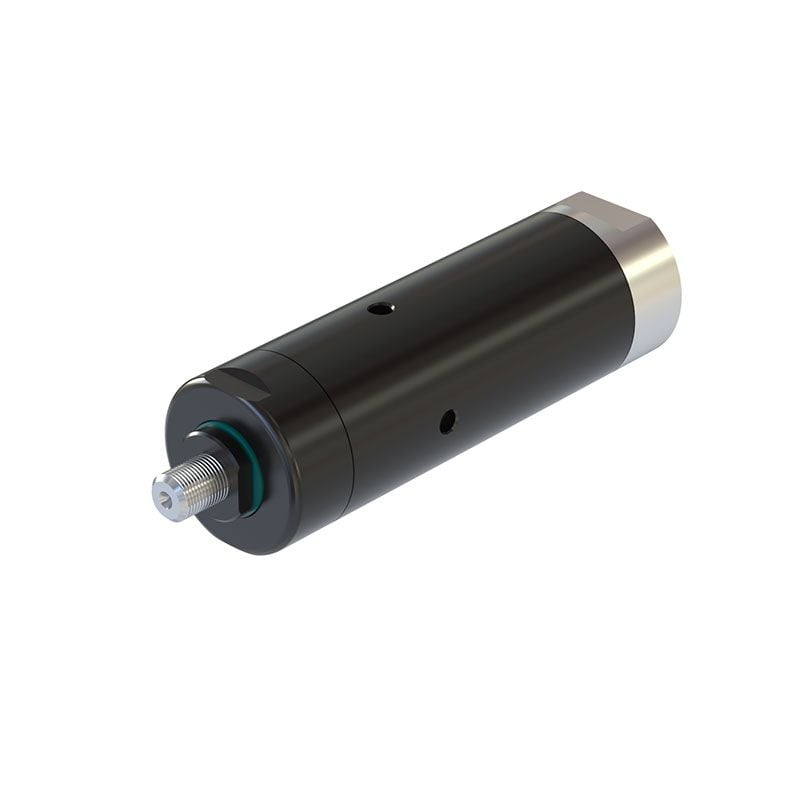

Precision Electric Motor Sales A220 Vane Air Motor LZB

Product Description

The Precision Electric Motor Sales A220 is a Vane Air Motor LZB designed for efficient operation in various applications. This motor features a five-vane design that enhances starting and low-speed performance.

• Constructed from hardened steel and aluminum for durability.
• Multi-step planetary gears enable specific torque and speed.
• ATEX certified for safe use in hazardous environments.

Product Highlights

This motor's lubrication-free vane type simplifies maintenance and operation, making it a reliable choice for technicians.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: A220

Technical Specifications

• Free speed: 21500 r/min
• Air consumption at max output: 11.2 cfm
• Max working pressure: 101 psig
• ATEX code dust: Ex II 2 D Ex h IIIC T110°C Db
• ATEX code gas: Ex II 2 G Ex h IIC T4 Gb
• Ingress protection rating: IP66
• Max ambient temperature: 40 °C
• Rotation direction: Clockwise
• Shaft type: Threaded
• Vane type: Lubrication free
• Inlet hose size: 0.3 inches
• Outlet hose size: 0.4 inches
• Max output: 0.36 hp
• Speed at max output: 9600 r/min
• External parts material: Hardened steel/Aluminium
• Min starting torque: 0.38 ft-lb
• Stall torque: 0.4 ft-lb
• Torque at max output: 0.2 ft-lb
