Precision Electric Motor Sales A0416B3809B Fan Motor

Product Description

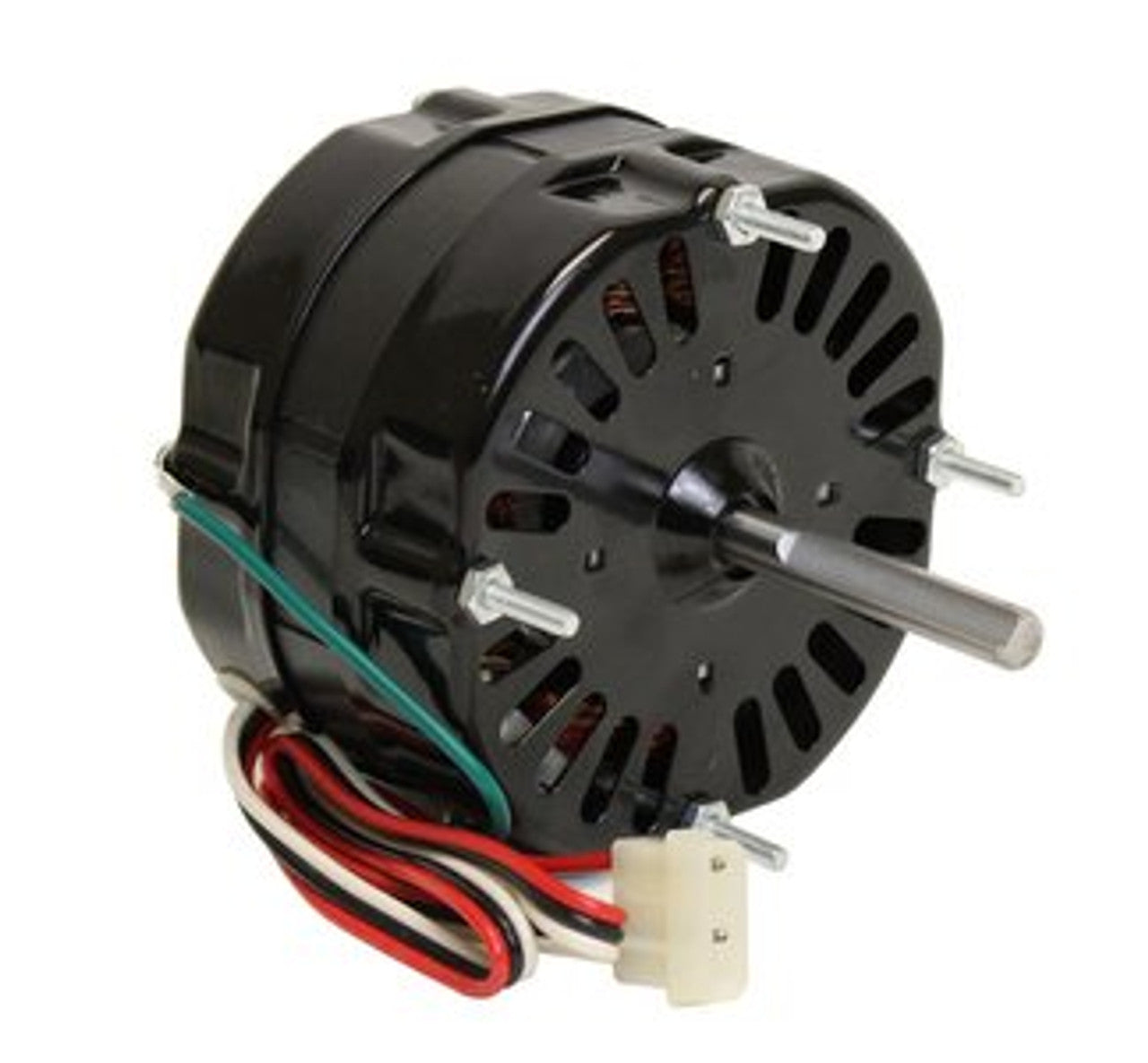

The Precision Electric Motor Sales A0416B3809B fan motor is engineered to replace various models including Loren Cook units. It operates at one hundred fifteen volts and sixty hertz, delivering one-sixteenth horsepower at one thousand five hundred fifty RPM. The motor has a diameter of four point thirty-seven inches and a three-eighths inch diameter shaft that is two point five inches long with a flat. This motor rotates clockwise when facing the shaft and includes four mounting studs for secure installation along with two-speed operation.

• Horsepower: 1/16 HP
• Speed: 1550 RPM, 2 Speed
• Shaft Dimensions: 3/8 diameter x 2.50 length

Product Highlights

The A0416B3809B fan motor is suitable for various applications where reliable performance is required. The two-speed operation allows flexible usage in different scenarios.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales

Technical Specifications

• Horsepower: 1/16 HP
• Speed: 1550 RPM
• Output Current: 2.2 AMPS
• Input Voltage: 115 Volts
• Frequency: 60 Hz
• Number of Speeds: 2 Speed

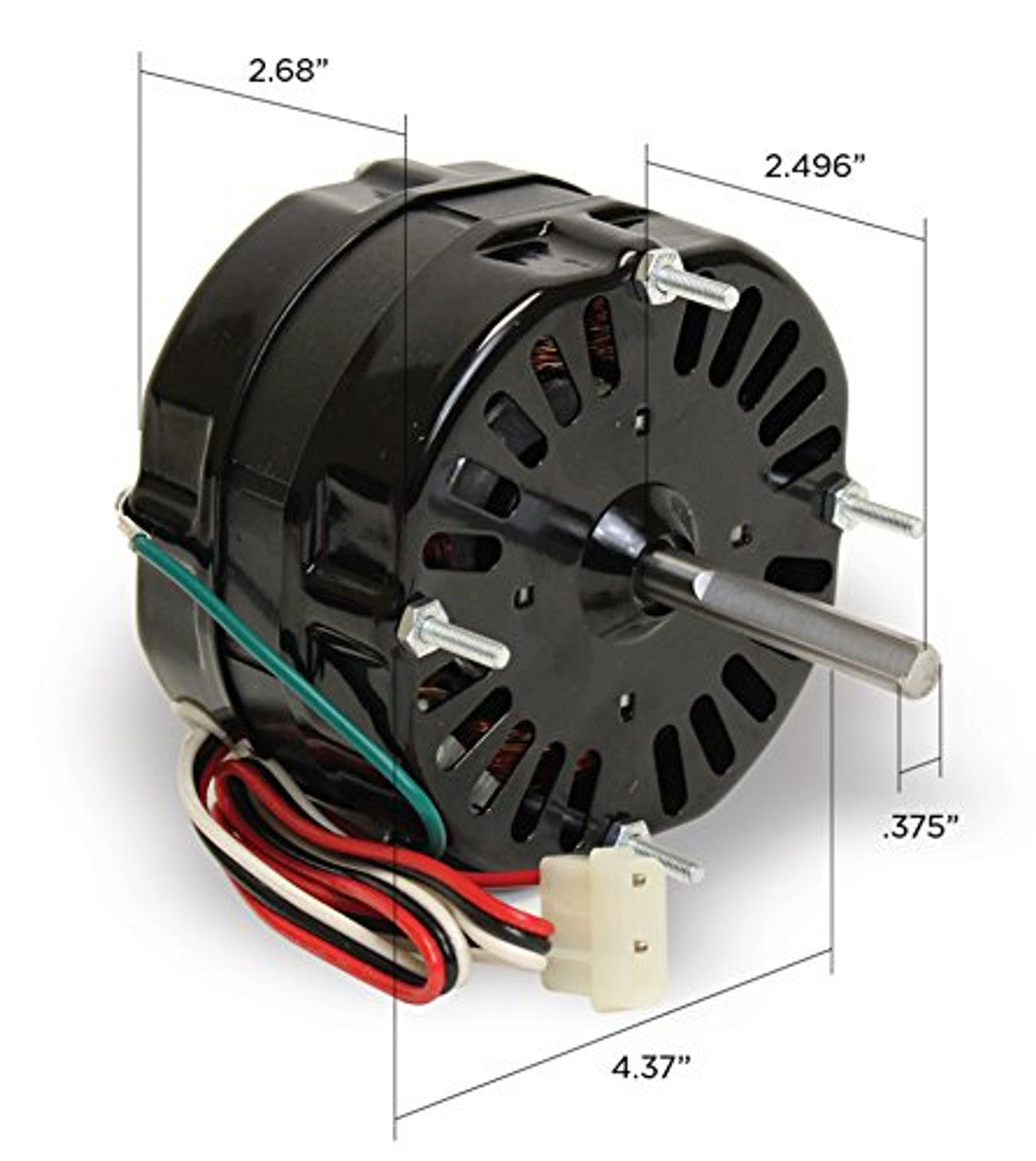

• Motor Diameter: 4.37 inches
• Shaft Diameter: 3/8 inches
• Shaft Length: 2.50 inches
• Rotation: Clockwise Facing Shaft
• Mounting Type: 4 Mounting Studs
