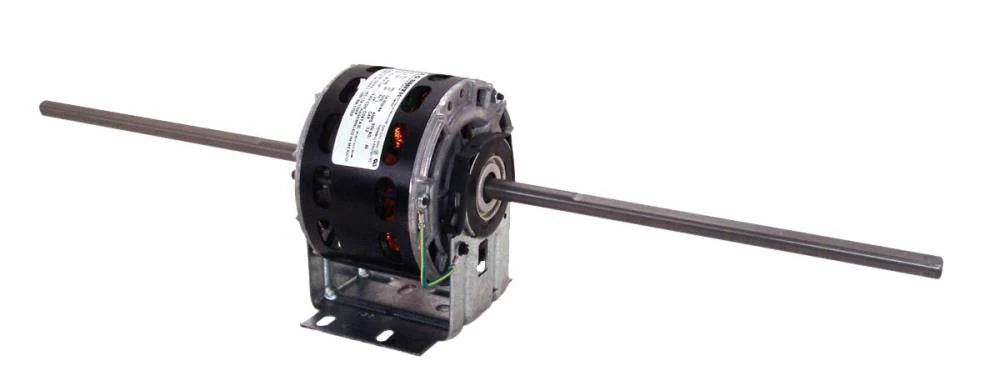

Precision Electric Motor Sales 93V1 Fan Coil / Room Air Conditioner Motor 0.07kW

Product Description

The Precision Electric Motor Sales 93V1 is suitable for fan coil and room air conditioner applications. This motor works well with HVAC/R systems. It features a shaded pole electrical type and includes an automatic overload protector for enhanced safety. The motor has a durable rolled steel construction and operates at one hundred fifteen volts.

• Shaded pole electrical type
• Automatic overload protection
• Rolled steel material

Product Highlights

This fan coil and air conditioner motor provides reliable performance with a shaded pole design and durable construction.

Product Information

Standard Information

• UPC Number: 786674011190
• Electrical Type: Shaded Pole

Technical Specifications

• Phase: Single
• Frame: 42Y
• HP: 1/10-1/20-1/30-1/40-1/70
• Kilowatts: 0.07
• Speeds: 5
• Enclosure: OAO
• Voltage: 115
• RPM: 1050
• Amperage: 3.2-2.3-1.7-1.4-.96
• Rotation: CW
• Material: Rolled Steel
• Overload Protector: Automatic
• Service Factor: 1
• Width: 8.00 inches
• Length: 26.50 inches
• Height: 9.00 inches
• Weight: 11.00 lbs
