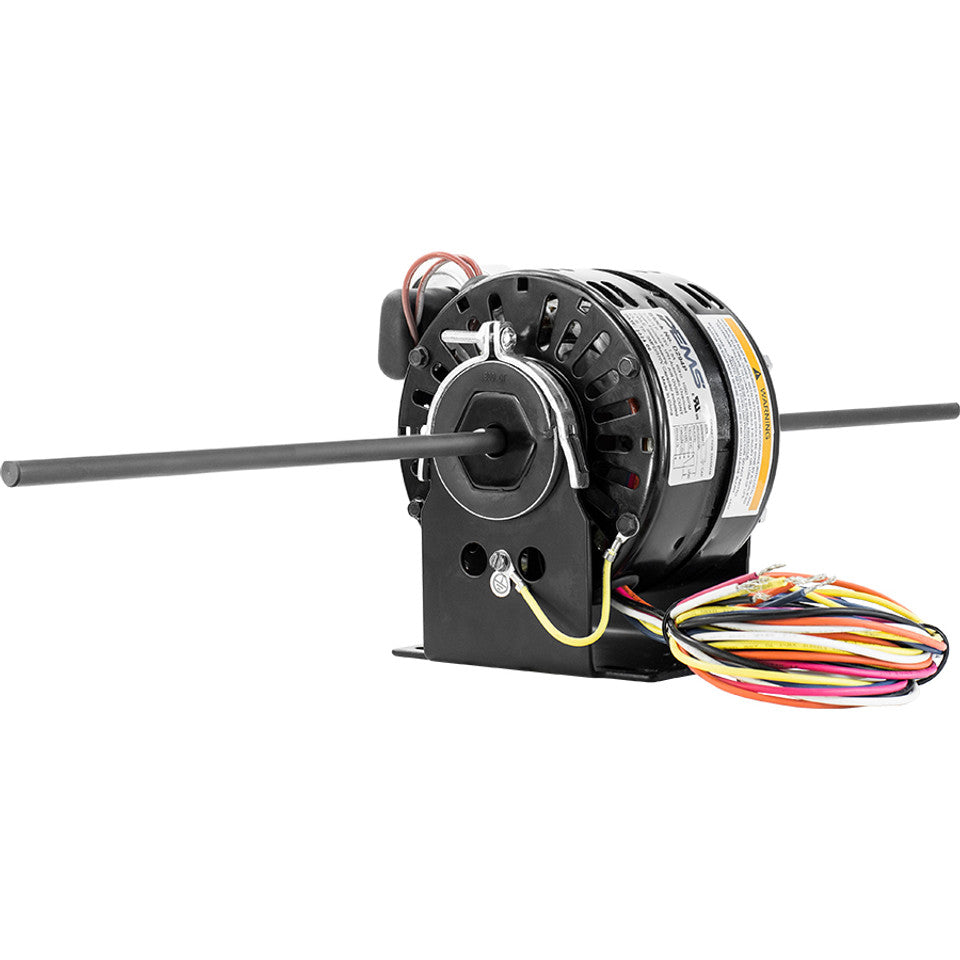

Precision Electric Motor Sales 642P 1/4 HP (Single-Phase) Motor

Product Description

The Precision Electric Motor Sales 642P is a single-phase motor with a power output of one-quarter HP. It operates at a voltage of two hundred seventy-seven volts and a frequency of sixty hertz. This motor has a durable open air over (OAO) design with a 42 frame and features permanent split capacitor (PSC) technology.

• 1/4 HP, 277V, single-phase motor
• Three-speed operation with a resilient mounting base
• Class B insulation and sleeve bearings

Product Highlights

This motor is engineered for horizontal mounting and is equipped with a resilient base for secure installation. Its operational speeds include one thousand four hundred seventy-five, one thousand two hundred eighty-five, and nine hundred seventy-five RPM.

Product Information

Standard Information

• Phase: 1
• Output Power: 1/4 HP
• Voltage: 277 V

Technical Specifications

• Speed: 1475/1285/975 RPM
• Service Factor: 1
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.1 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL Certification: Recognized
• CSA Certification: Y
• CE Certification: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Lead End
• Mounting: Resilient Base
• Motor Orientation: Horizontal
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Overall Length: 20.00 in
• Frame Length: 3.42 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 8.0X.5X8.0 in
