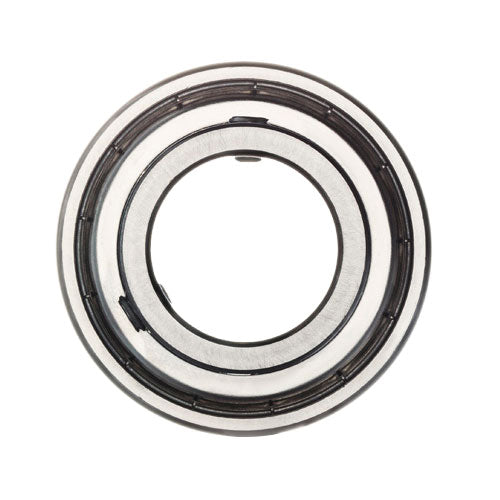

Precision Electric Motor Sales 6210ZZ Single Row Radial Ball Bearing

Product Description

The Precision Electric Motor Sales 6210ZZ is a single row radial ball bearing suitable for a variety of applications. Made from high carbon chrome steel, this bearing features a pressed steel cage and steel balls. It is double shielded to protect against contamination and retains lubricant effectively. The bearing meets ISO Class 0 precision standards, making it interchangeable for various uses. It is ideal for electric motors and high-speed applications.

• Deep groove ball bearing with double shields
• Constructed with a steel cage and steel balls
• Operating temperature range: -40 to 120 °C

Product Highlights

This bearing provides reliable performance in demanding environments. It is engineered for high-speed operations and is resistant to wear.

Product Information

Standard Information

• Manufacturer Part Number: 6210ZZ
• Type: Deep groove ball bearing

Technical Specifications

• Bore Type: Round
• Material: High carbon chrome steel
• Cage Type: Pressed
• Cage Material: Steel
• Ball Material: Steel
• Limiting Speed - Grease: 7100 RPM
• Seal Type: None
• Static Load Rating: 5200 lbf / 23200 N / 40.00 kN
• Dynamic Load Rating: 8760 lbf / 39000 N / 39.00 kN
• Enclosure: Double shielded
• Weight: 1.003 lb / 0.455 kg
• Operating Temperature Range: -40 to 250 °F / -40 to 120 °C
• Bore Diameter: 1.9685 in / 50.000 mm
• Outside Diameter: 3.5433 in / 90.000 mm
• Overall Width: 0.7874 in / 20.000 mm
• Maximum Operating RPM: 11000 RPM (oil), 7700 RPM (grease)
• Max Operating Temperature: 120 °C
• Min Operating Temperature: -50 °C
• Rolling Element: Ball
• Row Type: Single
• Series: 6200
