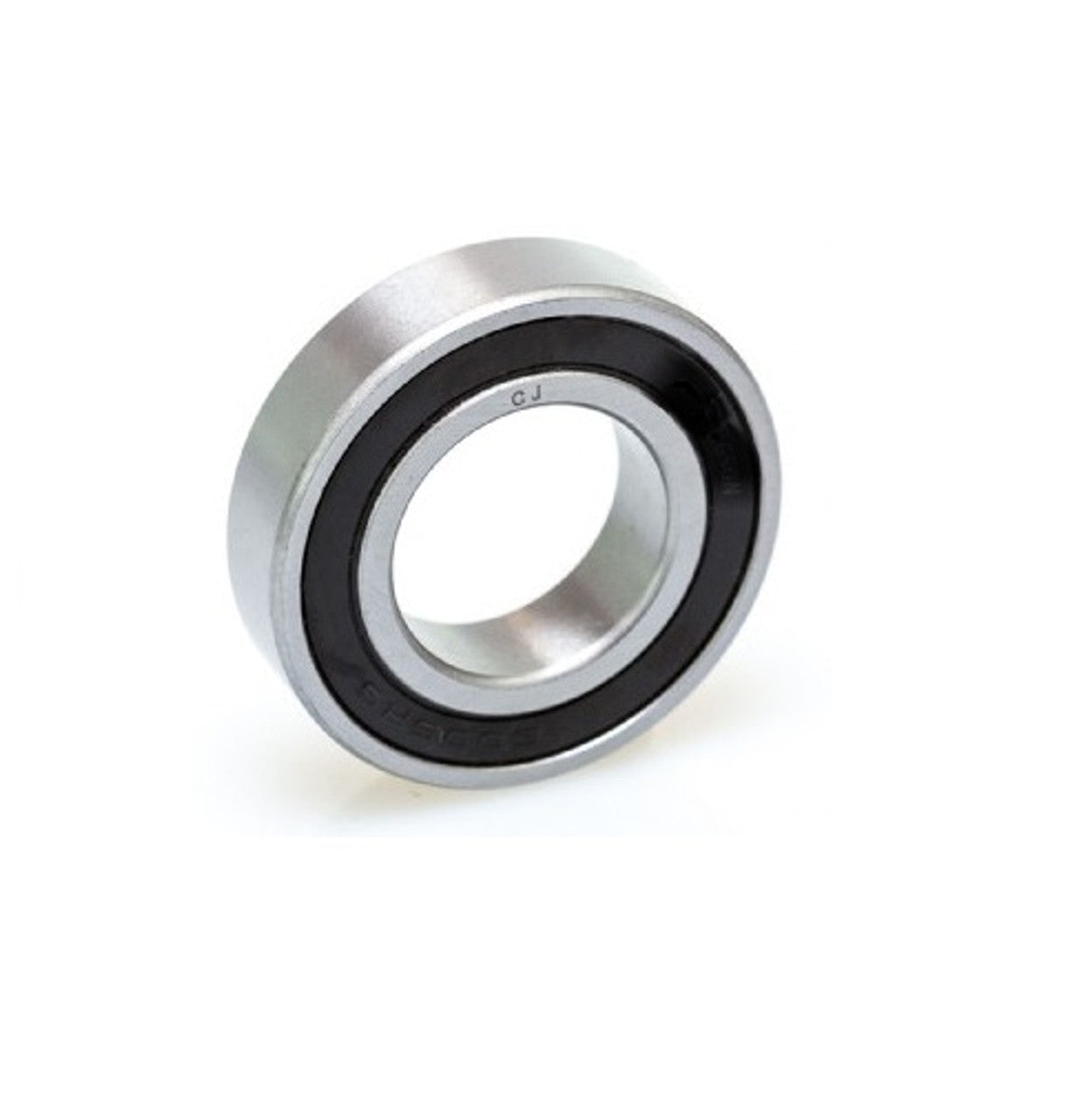

Precision Electric Motor Sales 6208LL ZVL Ball Bearings

Product Description

The Precision Electric Motor Sales 6208LL ZVL Ball Bearing offers reliable performance in various applications. This bearing features raceways made through a roll forming process that strengthens the bearing rings by producing a work-hardened surface. Each bearing is precisely crafted with ground and honed inner and outer raceways for a smooth finish.

• Roll-formed raceways enhance strength compared to traditional machining
• Precisely ground and honed surfaces for improved performance
• Sealed variants come pre-packed with Chevron SRI #2 grease for optimal operation

Product Highlights

The 6208LL bearings conform to industry standards with rigorous testing for noise reduction and precision.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: 6208LL

Technical Specifications

• Inner Diameter: 40 mm
• Outer Diameter: 80 mm
• Width: 18 mm
• Radial Internal Clearance: C3
• Ball Grade: #10
• Sealing Options: Sealed, Shielded, or Open
• Manufacturing Standards: ABMA, ISO
