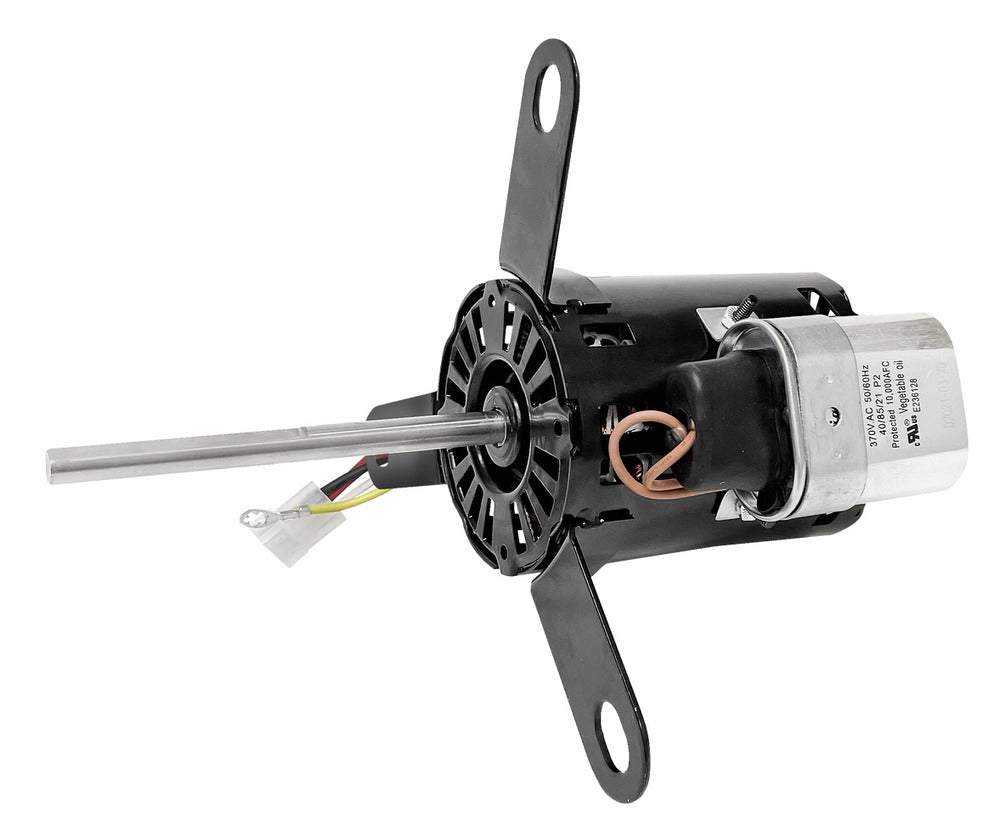

Precision Electric Motor Sales 56344A OEM Replacement Motor

Product Description

The Precision Electric Motor Sales 56344A OEM Replacement Motor is designed to serve as a direct aftermarket replacement for Penn Vent 56344-0 motors. This motor offers dual-speed operation, enhancing versatility in various applications. It operates efficiently at one hundred fifteen volts and is built for reliability.

• Operates at dual speeds for diverse applications.
• Direct replacement for Penn Vent 56344-0 motors.
• Compatible with Dayton 2D068 and Zephyr Z8S/H models.

Product Highlights

This product ensures ease of installation and operation, making it suitable for HVAC systems that require reliable performance.

Product Information

Standard Information

• Country of Origin:

Technical Specifications

• Horsepower: 0.08 HP
• Voltage: 115 Volts
• Current: 1.6/1.0 Amps
• Speed: 1050/1550 RPM
• Frequency: 60 Hz
• Motor Diameter: 3.3 inches
• Shaft Dimensions: 3/8 Dia. x 4.75 Long
• Body Length: 4.33 inches
• Bolt Circle: 7.21 inches
• Rotation: CW shaft end
• Enclosure: Open
• Product Type: OEM Replacement Motor
