Precision Electric Motor Sales 52290004 Aftermarket Replacement Electric Motor

Product Description

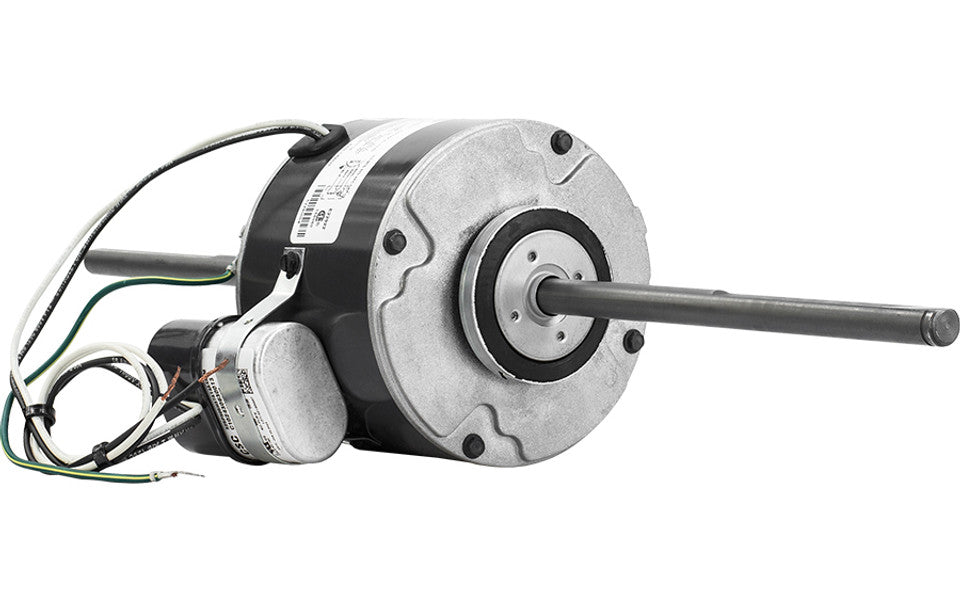

The Precision Electric Motor Sales Model 52290004 is an aftermarket replacement motor designed to fit Markel, TPI, and Fostoria applications, specifically for the 6300/T Series Cabinet Unit Heaters. This is a PSC motor that operates efficiently under 480 volts while providing reliable performance at a single speed.

• OEM direct replacement compatible with various brands.
• Features a dual shaft measuring one half inch in diameter and eight inches long.
• Includes a pre-attached capacitor for easy installation.

Product Highlights

This motor is suitable for heating units needing effective and efficient operation, ensuring energy savings while maintaining high performance.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: 52290004

Technical Specifications

• HP: 1/8 HP
• Voltage: 480 Volts
• Amps: 0.35 Amps
• RPM: 1590 RPM
• Frequency: 60 HZ
• Overload Protection: Automatic Overload
• Insulation Class: B
• Ambient Temperature: 40°C AMB
• Bearings: Ball Bearing
• Mounting: Resilient Mount
• Shaft Type: CWLE/Dual Shaft
• Shaft Dimensions: 1/2 x 8 x 1/2 Shafts with 4 Flats
• Enclosure: TEAO Enclosure
• Motor Type: PSC Motor
• Frame: 42Y Frame
• Capacitor: 3MFD/370V Capacitor Included
• Rotation: CWLE Rotation (Dual shaft)
• Wiring: 2 Wire - 24 Inches and 8 Inch Ground Hook Up
• Phase: Single Phase Power
• Speed: Single Speed Operation
• Design: Air Over Design
