Precision Electric Motor Sales 40046 Marvair Replacement Fan Motor 3/4 HP

Product Description

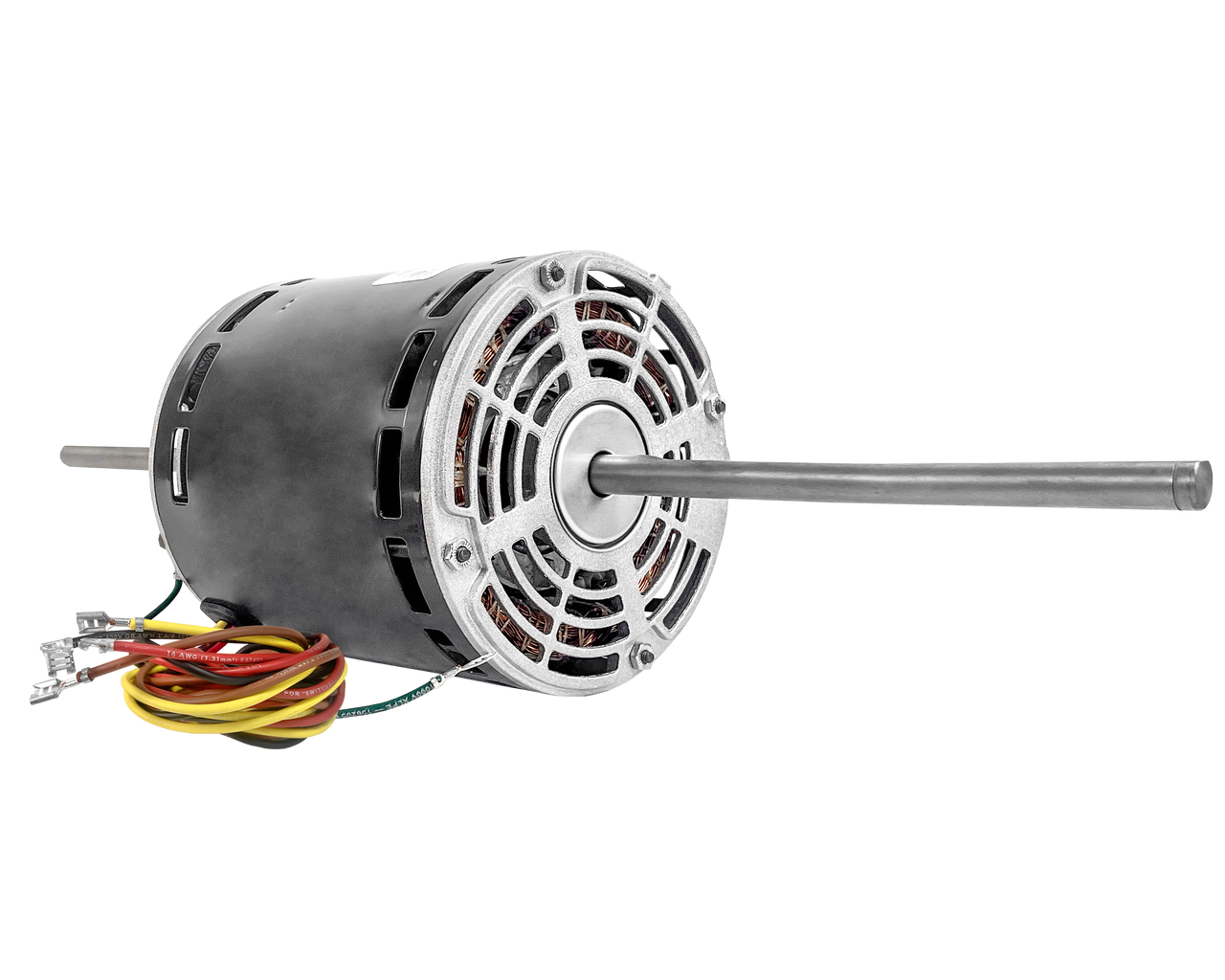

The Precision Electric Motor Sales Marvair Replacement Fan Motor 40046 is an effective aftermarket solution for HVAC systems. This two-speed, single-phase motor transforms electrical energy into mechanical energy to operate a rotating shaft. It is designed for adjustable airflow and is suitable for various HVAC applications such as air handlers, blowers, and exhaust fans.

• Direct OEM aftermarket replacement for Marvair 40046.
• Two-speed operation for tailored airflow.
• Automatic overload protection included for safety.

Product Highlights

Reliable component for HVAC systems with adjustable airflow options.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: 40046

Technical Specifications

• HP: 3/4 HP
• Voltage: 230 Volts
• RPM: 1120 RPM
• Amps: 4 Amps
• Frequency: 50/60 HZ
• Frame: 48Y frame
• Rotation: CCW Lead End
• Bearing Type: Sleeve bearing
• Shaft Type: Dual Shaft
• Shaft Dimensions: 7.5 x 1/2 x 7.5
• Enclosure: Open enclosure
• Mount: Belly Band mount
• Insulation Class: B
• Ambient Temperature: 40°C AMB
