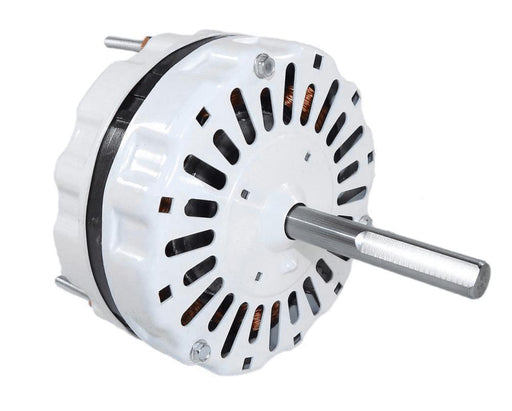

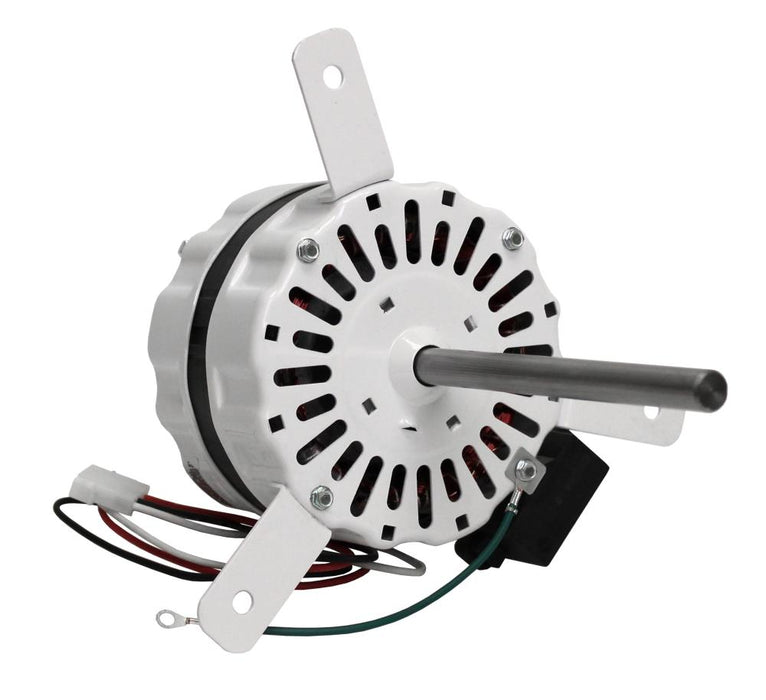

PRECISION ELECTRIC MOTOR SALES 3837B 1/4 HP Two-Speed Motor

Product Description

The Precision Electric Motor Sales 3837B is a one-fourth horsepower motor. It is built for ventilation tasks and operates at one hundred fifteen volts. The motor runs at a speed of sixteen hundred twenty-five revolutions per minute and has a current draw of three point nine amps. It has a Permanent Split Capacitor design and includes thermal protection. This model is a direct replacement for Gemini GC/GN 720 and 740 vent fans.

• 1/4 HP motor for ventilation
• Two-speed operation at 1625 RPM
• Clockwise rotation from shaft end

Product Highlights

The Precision Electric Motor Sales 3837B provides reliable performance in ventilation applications.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: 3837B

Technical Specifications

• Horsepower: 1/4 HP
• RPM: 1625
• Voltage: 115V
• Amperage: 3.9 Amps
• Speeds: 2-Speed
• Rotation: Clockwise (CW)
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.25 inches (Flat Shaft)
• Motor Diameter: 5 inches
• Motor Thickness: 3.35 inches
