Precision Electric Motor Sales 3315332 RV Air Conditioner Fan Motor 1/4 HP Replacement Part

Product Description

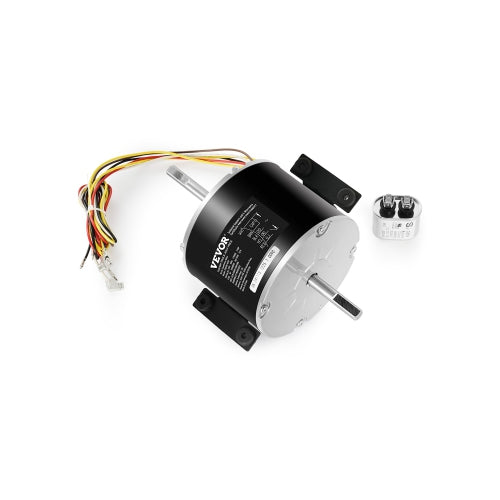

The Precision Electric Motor Sales 3315332 is a 1/4 HP RV air conditioner fan motor designed for efficient replacement. It operates on AC115V with a current rating of 3.0A. This motor features three operational speeds of 1650, 1500, and 1350 RPM, making it suitable for various cooling requirements. It includes a durable 0.5-inch diameter shaft and comes equipped with a CBB65 5uf/370V capacitor for optimal performance.

• Replacement motor for RV air conditioning units
• Three adjustable speeds: 1650, 1500, and 1350 RPM
• Includes CBB65 5uf/370V capacitor

Product Highlights

This motor is built with a strong metal housing, ensuring durability and reliable performance.

Product Information

Standard Information

• Horsepower: 1/4 HP
• Input Voltage: AC115V

Technical Specifications

• Item Model Number: YDK180-4G16
• Rated Current: 3 A
• Rated Speed: 1650 / 1500 / 1350 RPM
• Speed Levels: 3-Speed
• Shaft Diameter: 0.5 inches
• Equipped Capacitor Model: CBB 65, 5 µF / 370V
• Net Weight: 10.74 lbs
• Product Dimensions: 10.71 x 7.64 x 5.63 inches
