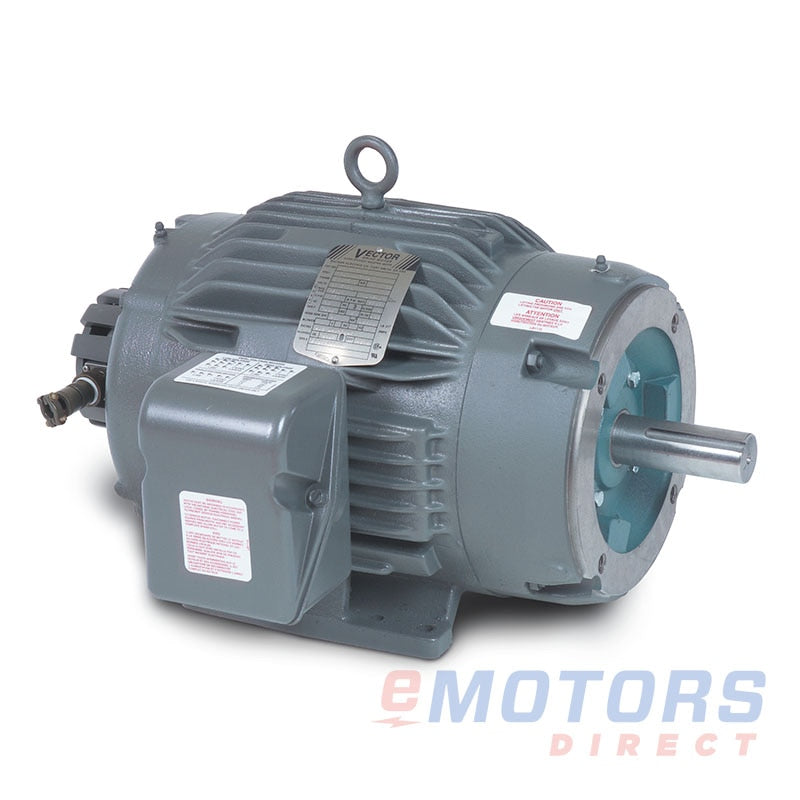

Precision Electric Motor Sales 32U28T

Product Description

The Precision Electric Motor Sales 32U28T is an electric motor designed for industrial AC variable speed applications. It provides constant torque and operates efficiently across a broad speed range. This motor is suitable for use in demanding environments due to its robust construction.

• Designed for continuous duty applications.
• Cast iron frame enhances durability.
• Includes three phase thermostats for optimal performance.

Product Highlights

This motor is ideal for various industrial applications, offering reliable performance and long service life.

Product Information

Standard Information

• Brand: Precision Electric Motor Sales
• MPN: 32U28T

Technical Specifications

• Rated Motor Output Power: 20 HP / 15 kW
• Rated Motor Speed: 1800 / 5000 RPM
• Rated Motor Voltage: 230V / 460V
• Rated Motor Current: 25.5 AMP
• Phase: 3
• Poles: 4
• Service Factor: 1
• Nominal Efficiency: 94.5%
• Nominal Power Factor: 77
• Leads: 9#10
• Frequency: 60 Hz
• Frame: 284T
• Enclosure: TENV
• Mounting: Rigid
• Approximate Weight: 405 lb
• Frame Material: Cast Iron
• C-Dimension: 27.36 inches
• NEMA Design: A
• Insulation Class: H
• Rotation: Reversible
• Duty: Continuous
• Ambient Temperature: 40 °C
• DE Bearing: 6311
• NDE Bearing: 6309
• Shaft Diameter: 1.875 inches
• Shaft Length: 4.622 inches
• Grease Type: Polyrex EM
• Greaseable: Yes
• Agency Approvals: CSA, UR
• Country of Origin: USA
