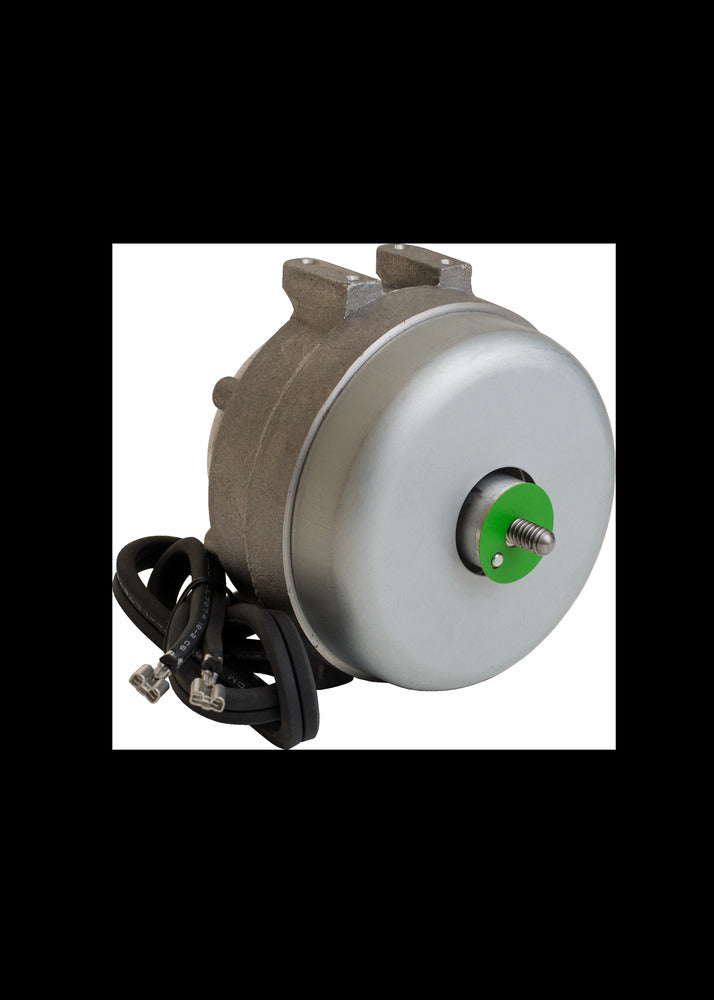

Precision Electric Motor Sales 1000225-130 OEM Replacement Motor

Product Description

The Precision Electric Motor Sales 1000225-130 is an OEM replacement motor suitable for various applications. This single-phase, shaded pole motor operates consistently at 1550 RPM and runs on 208-230 Volts.

• Shaded pole electrical type
• Unit Bearing frame for stability
• TEAO enclosure for enhanced protection

Product Highlights

This motor features impedance overload protection, ensuring safe operation. It can rotate in both clockwise and counterclockwise directions, making it versatile for different setups.

Product Information

Standard Information

• Electrical Type: Shaded Pole
• RPM: 1550

Technical Specifications

• Frame: Unit Bearing
• Enclosure: TEAO (Totally Enclosed Air Over)
• Phase: Single
• Voltage: 208-230 Volts
• Rotation: CWSE (Clockwise Shaft End) / CCWLE (Counterclockwise Lead End)
• Material: Aluminum
• Amperage: 0.18 Amp
• Number of Speeds: 1
• Overload Protector: Impedance
• Frequency: 60/50 Hz
• Shaft Diameter: 7/32 inches
• Shaft Length: 1/2 inches
• Thermally Protected: Yes
