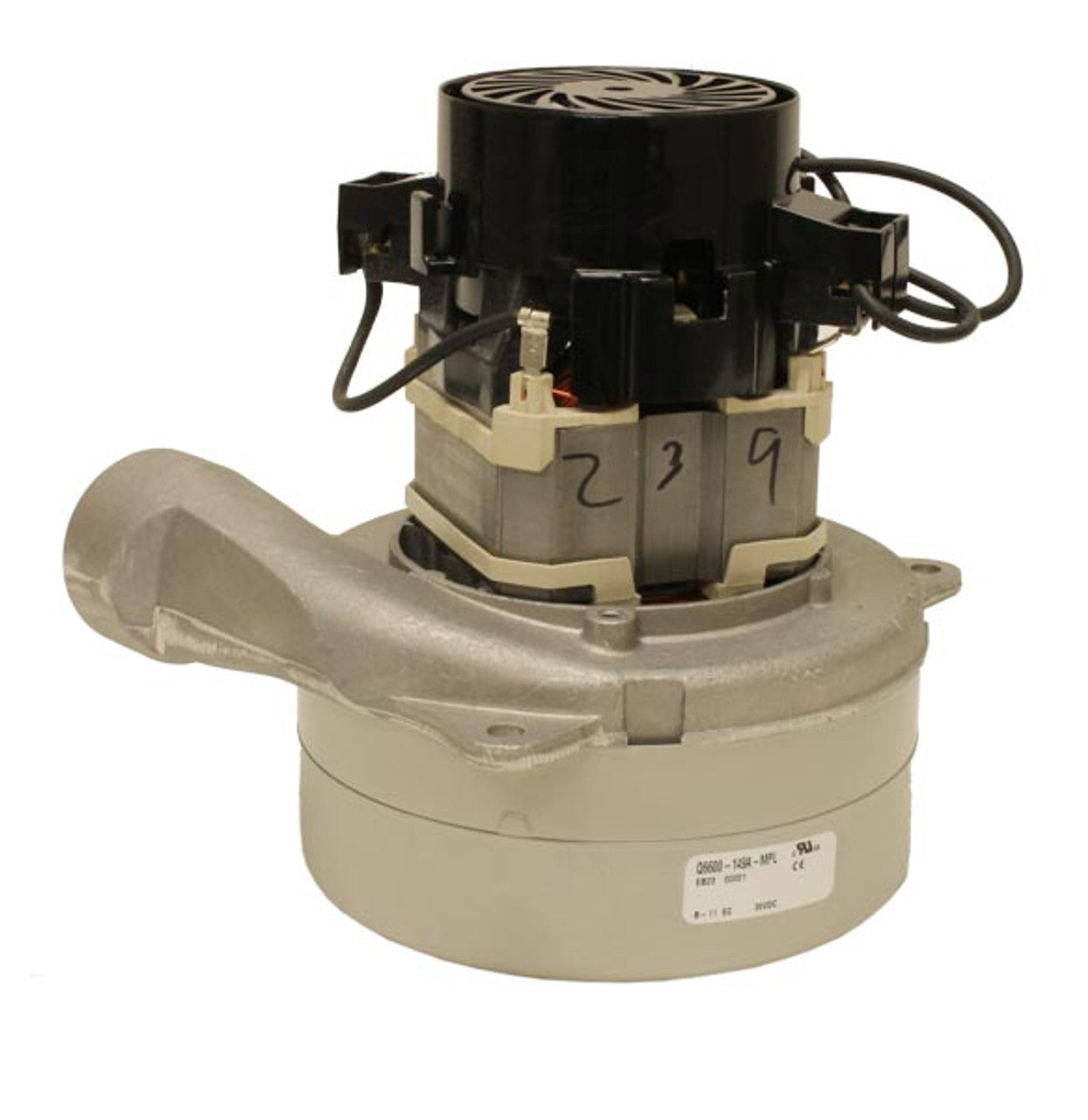

Precision Electric Motor Sales 0103-001 Vacuum Motor

Product Description

The Precision Electric Motor Sales 0103-001 is a vacuum motor designed for effective performance. This motor operates at thirty-six volts and uses a two-stage configuration. It features a bypass tangential type design that enhances airflow efficiency. The 0103-001 achieves seventy-one cubic feet per minute at a two-orifice setup and provides a sealed water column vacuum of fifty-one inches.

• Voltage: 36V
• Type: Bypass Tangential
• Max Amperage: 10.9

Product Highlights

This motor is suitable for various vacuum applications, providing reliable suction power and efficiency.

Product Information

Standard Information

• MPN: 0103-001
• Brand: Precision Electric Motor Sales

Technical Specifications

• Voltage: 36 Volt
• Stages: 2
• CFM @ 2 Orifice: 71
• Sealed H20 Vacuum: 51
• Max Air Watts: 118
• Max Amps: 10.9
• Overall Height: 8.16 inches
• Type: BPT Type (Bypass Tangential)
