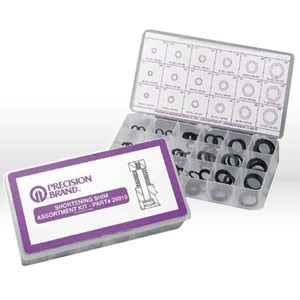

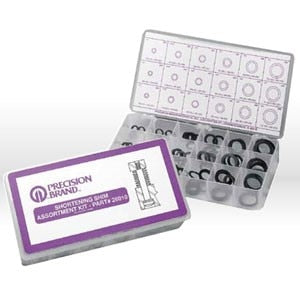

Precision Brand 26010 Shoulder Screw Shortening Shims 270 Pc

Product Description

The PRECISION BRAND 26010 is a 270-piece assorted set of shoulder screw shortening shims designed to fine-tune shoulder screw length in mechanical assemblies. These shims allow technicians and machinists to achieve precise shoulder engagement without custom-machining a fastener. The assortment provides a range of thicknesses in a single kit, reducing bench time when fitting shoulder screws in jigs, fixtures, dies, and production tooling. The complete set weighs 0.56 pounds, making it compact enough to store in a toolbox or parts cabinet.

Shoulder screw shortening shims are used wherever a shoulder screw must seat flush or to a controlled depth against a mating surface. Common applications include die sets, punch presses, fixture plates, and precision machine tool assemblies. Maintenance technicians, tool-and-die makers, and industrial mechanics reach for an assortment like the 26010 when building or refurbishing tooling that requires repeatable shoulder screw positioning. The variety of shim sizes in one kit covers a wide range of shoulder screw diameters and shortening increments without requiring multiple individual part orders.

Key Features

• 270-piece assortment covers a broad range of shoulder screw sizes and shortening increments
• Engineered for precise shoulder screw length adjustment without custom machining
• Compact kit weighing 0.56 pounds stores easily in a toolbox or parts cabinet
• Sold as a single unit assortment for straightforward inventory and ordering
• Suited for use in dies, fixtures, jigs, and precision mechanical assemblies

Compatibility

Designed as an OEM-style assortment of shortening shims for use with standard shoulder screws found in industrial tooling, die sets, and precision mechanical fixtures.

Installation Notes

Installation is typically performed by tool-and-die makers or maintenance mechanics during tooling assembly or refurbishment. De-energize and lock out all equipment before disassembling any die set or fixture. Select the appropriate shim thickness to achieve the required shoulder engagement, and verify seating before returning the assembly to service. Follow applicable facility safety and lockout/tagout procedures throughout the process.

Technical Specifications

• Quantity: 270 pieces assorted
• Weight: 0.56 pounds
• UPC: 698158260102

Standard Information

• Brand: PRECISION BRAND
• Manufacturer Part Number: 26010
