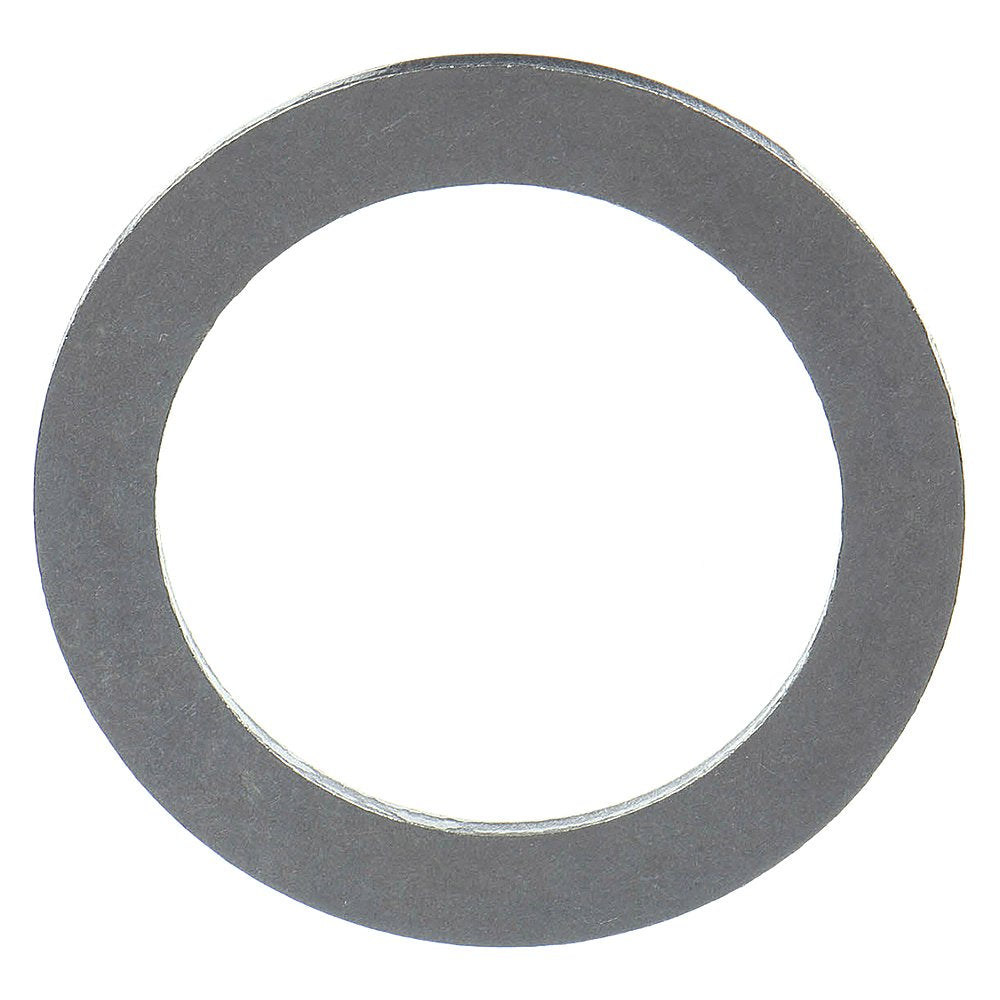

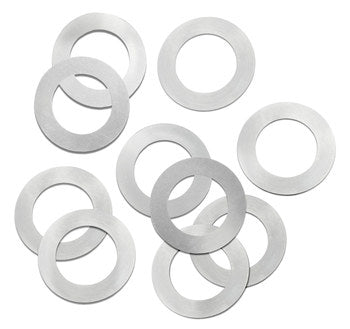

Precision Brand 25153 Arbor Shim W/O Keyway 0.020 inch thickness 5/8 inch ID 1 inch OD 10 pack

Product Description

The PRECISION BRAND 25153 arbor shim is designed to reduce physical disturbances in mechanical assemblies. Constructed from full hard steel/low carbon steel, this shim features a 0.020 inch thickness, a 5/8 inch inner diameter, and a 1 inch outer diameter. It is supplied without a keyway, making it suitable for various spacing and alignment applications where precise fit is required. This component helps maintain proper spacing and reduce wear.

• Designed to reduce physical disturbances in mechanical assemblies.
• Constructed from low carbon, full hard steel for durability.
• Features precision thicknesses for accurate spacing and alignment.

Product Highlights

This arbor shim provides precise spacing and alignment for mechanical components, made from durable steel without a keyway.

Product Information

Standard Information

• Brand: PRECISION BRAND
• Manufacturer Part Number: 25153
• Country of Origin: US

Technical Specifications

• Manufacturer Part Number: 25153
• Brand: Precision Brand
• Material: Full Hard Steel/Low Carbon Steel
• Thickness: 0.020 inch
• Keyway: Without Keyway
• Inner Diameter: 5/8 inch
• Outer Diameter: 1 inch
• Package Quantity: 10 per pack
• Measurement System: Inch
• Product Type: Arbor Shim
• Color: Silver
• Finish: Plain
• Inner Diameter Tolerance: +0.011 inch, +0.011 inch to 0 inch
• Material Grade/Class: Ungraded
• Material Quality Standards: Aisi 1008-1010
• Outer Diameter Tolerance: -0.002 inch to +0.002 inch
• Hardness: B90
• Temper: H18
• Tensile Strength: 80000 psi
• Thickness Tolerance: -0.001 inch to +0.001 inch
• SKU: PRE 25153
• Manufacturers: Precision Brand Products
