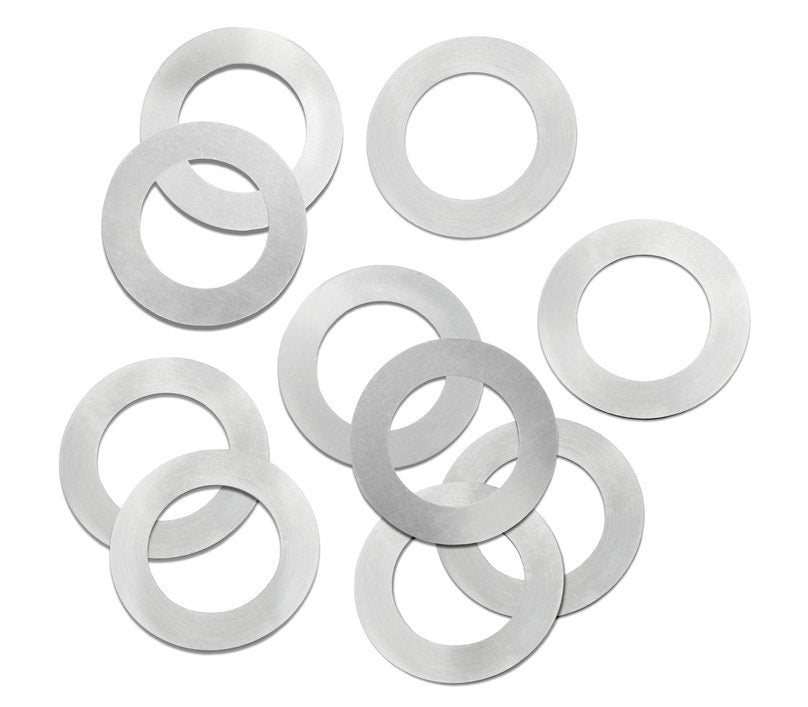

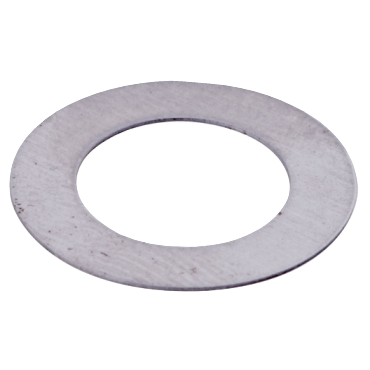

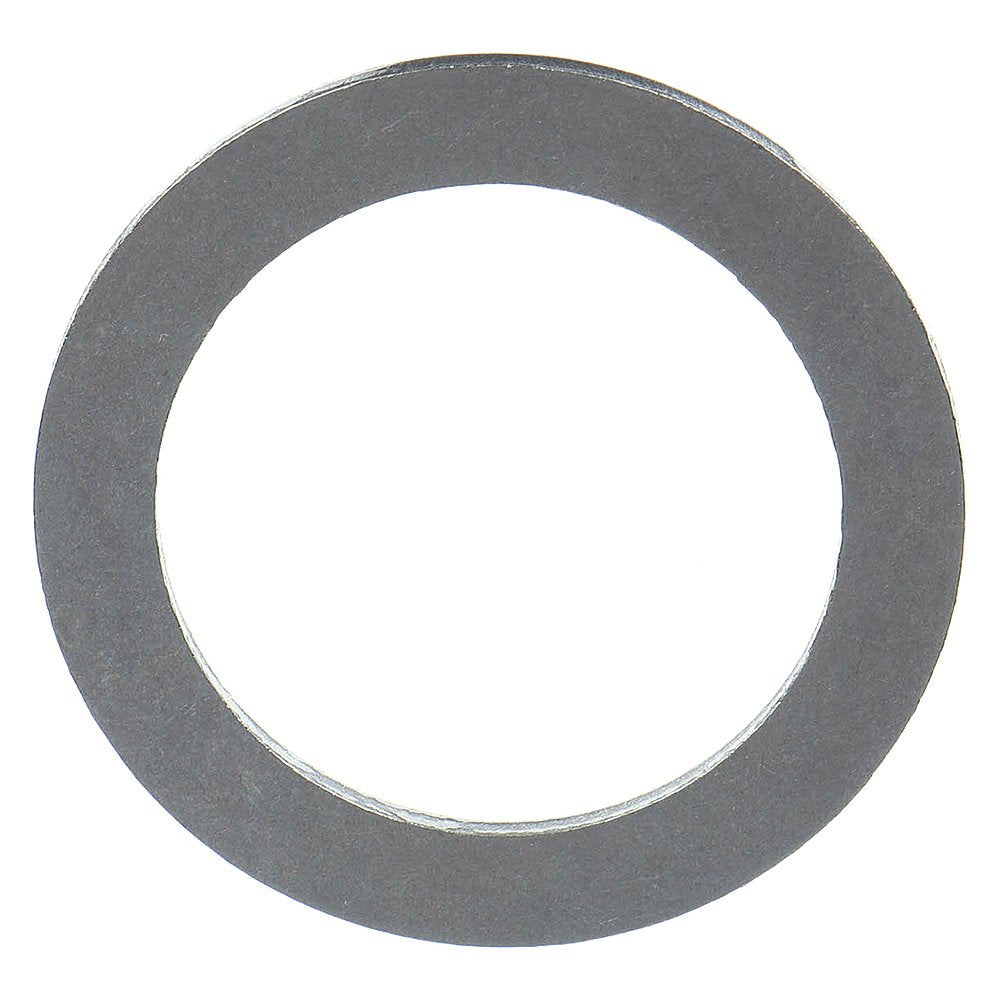

Precision Brand 25150 10 Piece Steel Arbor Shim 0.01 Inch Thickness 5/8 Inch ID 1 Inch OD

Product Description

The PRECISION BRAND 25150 is a 10-piece steel arbor shim designed for fast and accurate spacing of milling cutters, gang cutters, saws, slitting blades, and grinding tools. Made from high-quality, low carbon, cold-rolled, full-hard steel, this shim features a 0.01 inch thickness, 5/8 inch inside diameter, and 1 inch outside diameter. It helps save time by eliminating the need for re-machining, ensuring precise results in various machining and cutting operations.

• Made from full hard, cold rolled, low carbon 1010 steel for durability.
• Features precision thicknesses for accurate results in spacing applications.
• Designed without keyways, simplifying installation and use for various tools.

Product Highlights

Saves time by eliminating re-machining for efficient spacing of tools.

Product Information

Standard Information

• Brand: PRECISION BRAND
• Manufacturer Part Number: 25150
• Country of Origin: United States

Technical Specifications

• Material: Low Carbon, Full Hard Steel
• Keyway: No
• Outer Diameter: 1 in
• Inner Diameter: 5/8 in
• Thickness: 0.01 in
• Package Quantity: 10
• System of Measurement: Inch
• Product Type: Arbor Shim
• Finish: Plain
• Material Grade/Class: Ungraded
• Material Quality Standards: AISI 1008-1010
• Rockwell Hardness: B90
• Temper: H18
• Tensile Strength: 80000 psi
• Outer Diameter Tolerance: +/- 0.002 in
• Inner Diameter Tolerance: +0.011 in / -0.000 in
• Thickness Tolerance: +/- 0.00075 in
