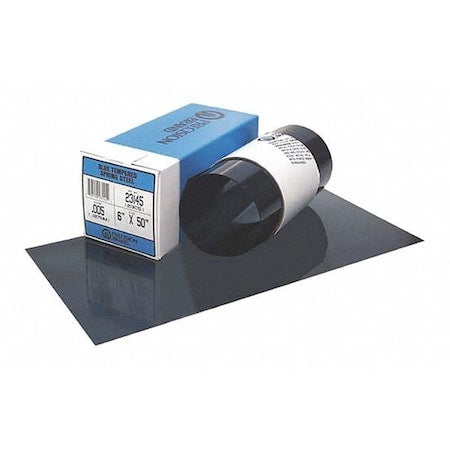

Precision Brand 23130 Shim Stock Roll High Blue Stl 0.0040 In

Product Description

The Precision Brand 23130 is a shim stock roll made from high-quality steel. This shim material has a thickness of 0.0040 inches and is designed for applications in tool and die work where durability is important.

• Made from 1095 Blue Tempered Spring Steel
• Meets or exceeds AISI-1095 standards
• Suitable for hydraulic and hot oil applications

Product Highlights

This shim stock roll is ideal for templates and shim applications demanding high fatigue strength. It is full hard with a tensile strength rating of 230,000 psi.

Product Information

Standard Information

• Brand: Precision Brand
• MPN: 23130

Technical Specifications

• Material: 1095 Blue Tempered Spring Steel
• Thickness: 0.0040 inches
• Width: 5 inches
• Length: 50 inches
• Rockwell Hardness: C48-51
• Thickness Tolerance: +/-0.0005 inches
• Width Tolerance: +/-0.005 inches
• Length Tolerance: +3/-0.250 inches
• Tensile Strength: 230,000 psi
• Applications: Tool and Die fields for templates
• Temp. Range: Hydraulic: -40 to 212 degrees, Air Brake: -40 to 200 degrees, Hot Oil: -40 to 250 degrees
