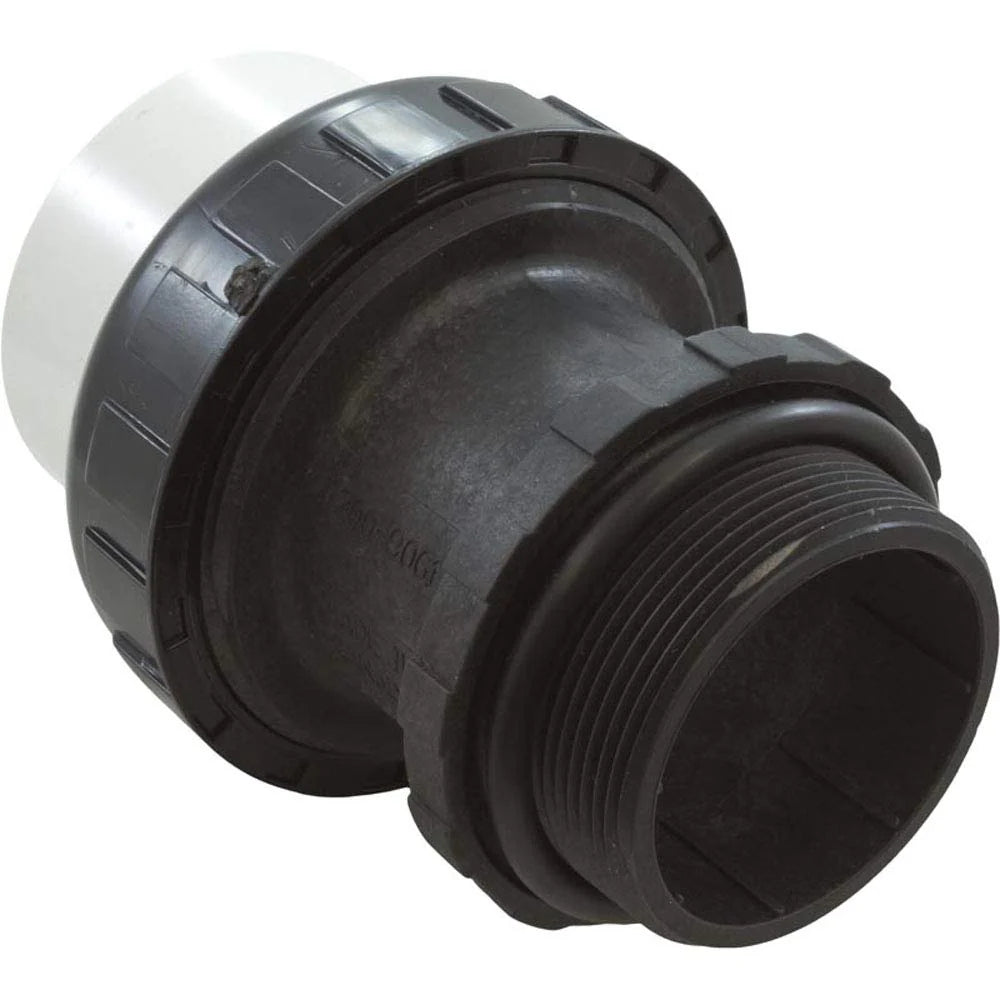

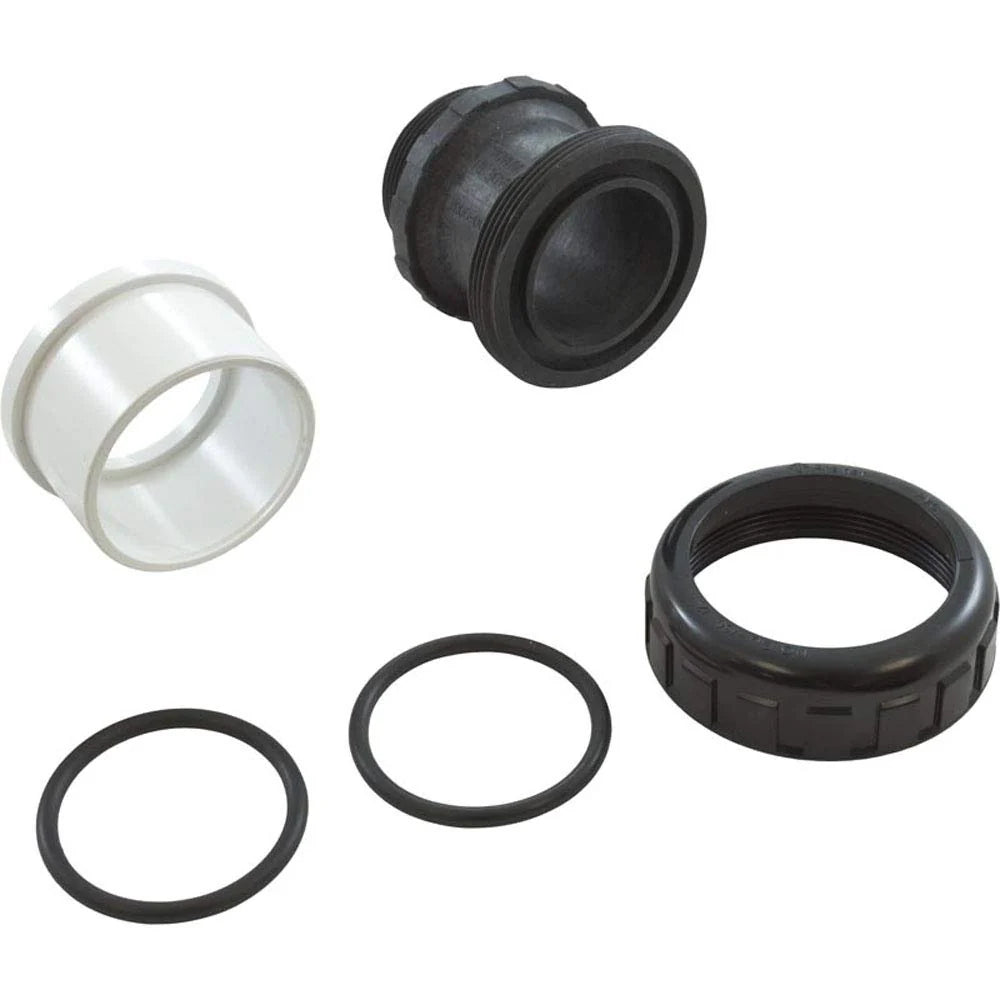

Praher 200-9061 Adapter Union Series 906 2 mpt x 2 Long w/O-Ring

Product Description

The Praher 200-9061 Adapter Union from the Series 906 is designed to install into pump volute and suction connections. It helps prevent high temperature build-up in pump volutes when dry running pumps generate severe heat.

• Prevents stressing on outer threads of mating parts due to over-tightening and consequent cracking.
• Provides a reliable seal on the O-ring surface without the need for thread sealants.
• Ensures easy installation and a union connection for future servicing.

Product Highlights

This adapter union is essential for maintaining pump performance and preventing damage from heat build-ups. It simplifies installation and servicing, crucial for professional plumbers and HVAC technicians.

Product Information

Standard Information

• Brand: Praher
• MPN: 200-9061

Technical Specifications

• Series: 906
• Connection: 2 mpt x 2
• Temperature Range: Up to 176 degrees Fahrenheit
• Pressure Rating: 3.5 BAR / 50 PSI
• Material: High temp. EPDM O-ring
• Application: Pool, spa, and pump installations
