Pps 95580 MegaPress 304 FKM 4118XL Tee, 2-1/2 x 2-1/2 x 2 in, Press

Product Description

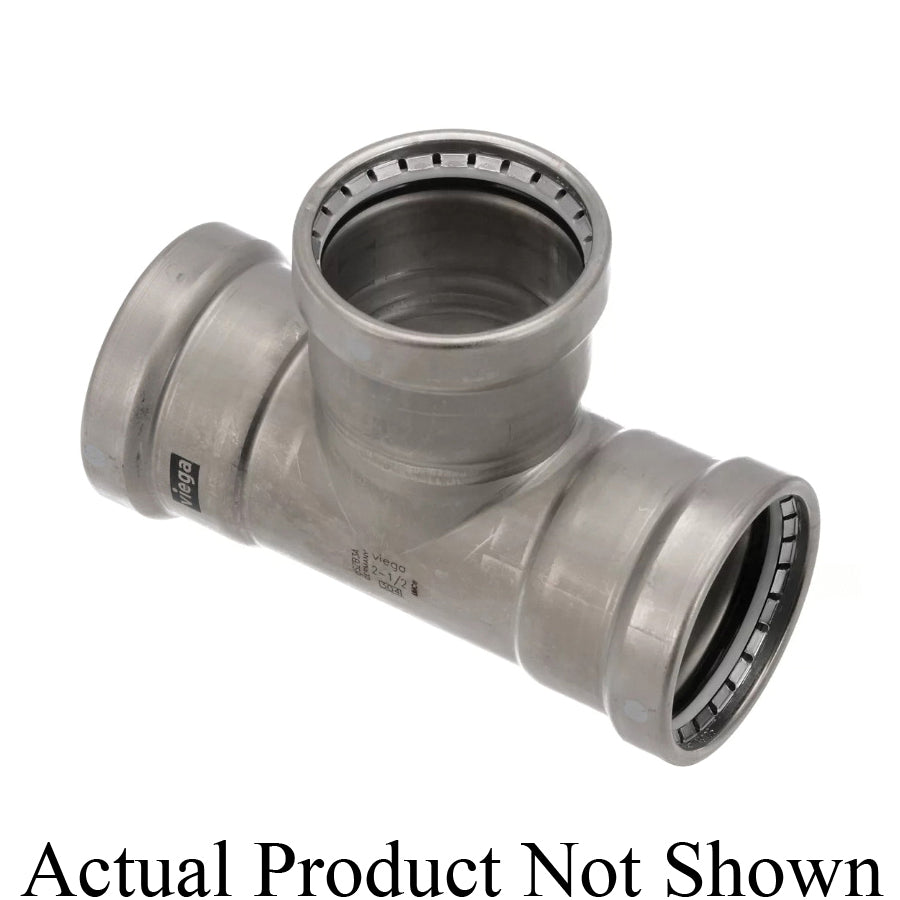

The PPS 95580 MegaPress® 304 FKM fittings are designed for use with standard IPS ASTM A312 stainless steel pipe, forming a complete press system ideal for industrial applications. This 4118XL series tee fitting measures 2-1/2 x 2-1/2 x 2 inches, utilizes a press connection, and is constructed from 304 stainless steel. It has a pressure rating of 200 psi and a temperature range of 14 to 284 deg F.

• Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
• Wide range of fitting configurations
• Eliminates threading and welding
• No fire watches, hot work permits or messy cutting oils

Product Highlights

The MegaPress system makes secure press connections in seconds and is compatible with existing press tools. It also features Smart Connect® technology.

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 95580
• Country of Origin: Import

Technical Specifications

• End Style: Press
• Fitting/Connector Type: Tee
• Material: 304 Stainless Steel
• Nominal Size: 2-1/2 x 2-1/2 x 2 In
• Pressure Rating: 200 psi
• Series: 4118XL
• Temperature Rating: 14 to 284 deg F
