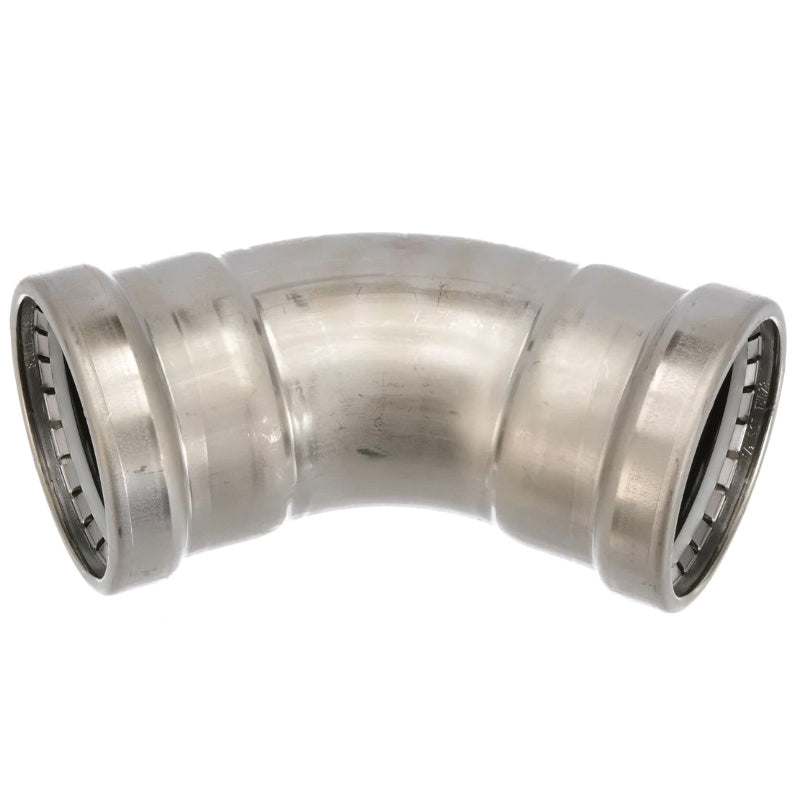

Pps 95535 MegaPress® 304 FKM 4126XL Elbow, 3 in, Press

Product Description

The PPS 95535 MegaPress® 304 FKM fittings are designed for use with standard IPS ASTM A312 stainless steel pipe, forming a complete press system ideal for industrial applications. These fittings can be used with SCH 5 to 40/STD stainless steel pipe (1/2 in to 2 in fittings) and SCH 10 to 40/STD stainless steel pipe (2-1/2 in to 4 in fittings).

• Engineered with a 420 stainless steel grip ring plus a PBT separator ring for sizes 2-1/2 in to 4 in fittings
• Wide range of fitting configurations
• Eliminates threading and welding

Product Highlights

Makes secure press connections from 1/2 in to 4 in seconds. Compatible with existing press tools. Features Smart Connect® technology.

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 95535

Technical Specifications

• End Style: Press
• Fitting/Connector Type: 45 deg Elbow
• Material: 304 Stainless Steel
• Nominal Size: 3 In
• Pressure Rating: 200 psi
• Series: 4126XL
• Temperature Rating: 14 to 284 deg F
