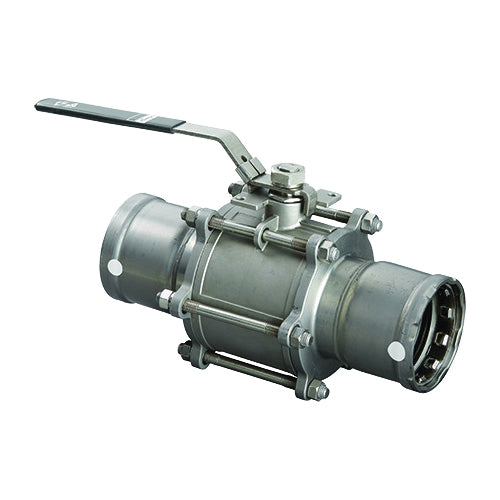

Pps 86650 MegaPress® 304 FKM 3-Piece Ball Valve, 2-1/2 in, Press REPLACEMENT MPN

Product Description

The PPS 86650 MegaPress® 304 FKM 3-Piece Ball Valve, part of the 4175.8XL series, is designed for use in system installations. This 2-1/2 inch press valve is suitable for water applications. It features Smart Connect® technology and is designed for secure connections. The valve offers a locking handle actuator and FKM softgoods.

• Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 in to 2 in and a PBT separator ring for sizes 2-1/2 in to 4 in fittings
• Eliminates threading and welding
• Compatible with existing press tools

Product Highlights

The PPS MegaPress® ball valve provides secure press connections and installs rapidly. It is suitable for SCH 5 to SCH 40 stainless steel pipe.

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 86650
• Country of Origin: Import

Technical Specifications

• Actuator Type: Locking Handle
• Ball Material: 316 Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: Press
• Media: Water
• Nominal Size: 2-1/2 In
• Pressure Rating: 200 psi
• Series: 4175.8XL
• Softgoods Material: FKM
• Temperature Rating: 14 to 284 deg F
• Top to Inlet Center: 4.921 in
• Trim Material: 316 Stainless Steel
• Type: 3-Piece
