Pps 691514954509 MegaPress Flange 1 in (1/PK) 95450

Product Description

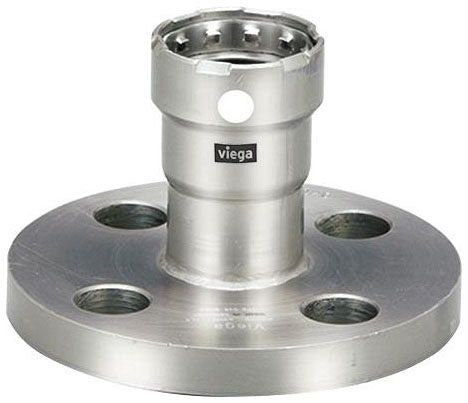

PPS 691514954509 is a MegaPress 1 in stainless steel press flange designed for press-connection piping systems. The flange is made from 304 stainless steel, includes an FKM sealing element, and has a pressure rating of 200 psi with a temperature range of 0 to 250 deg F. Dimensions are approximately 4.33 in diameter by 2.76 in length, intended for commercial and industrial pipe and tube fittings.

• 304 stainless steel construction with press end style and flange connector
• Includes FKM sealing element; pressure rating 200 psi; temperature range 0 to 250 deg F
• Dimensions approx. 4.33 in diameter x 2.76 in length; package: 1/PK

Product Highlights

1 in MegaPress press flange, 304 stainless steel, 200 psi, includes FKM sealing element

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 691514954509
• Country of Origin: Import

Technical Specifications

• Brand: PPS
• MPN: 691514954509
• Manufacturer: Viega
• Manufacturer Part Number: 95450
• Product Name: MegaPress Flange
• Fitting Connector Type: Flange
• End Style: Press
• Size: 1 in
• Material: 304 Stainless Steel
• Includes: FKM sealing element
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Dimensions: 4.33 in diameter x 2.76 in length
• Weight: 2.1330 LB
• Application: Commercial and Industrial
• Category: Stainless Steel Press Fittings
• Type: Press Fittings
• Standards/Approvals: ASTM A312; CRN 13492.5 A/B; IAPMO/UPC PS-117; ICC LC1002; TSSA/ASME B31.1/B31.3/B31.9
• Package Quantity: 1/PK
