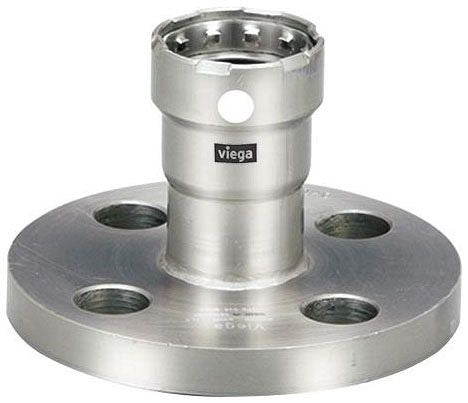

Pps 691514954455 Press Flange 3/4 in 304 Stainless Steel

Product Description

The PPS 691514954455 is a 3/4-inch press-style flange fitting constructed from 304 stainless steel, designed for use in commercial and industrial piping systems. It connects to pipe using a press-end engagement, eliminating the need for threading, soldering, or welding at the joint. The fitting carries a pressure rating of 200 psi and a temperature rating of 0 to 250 degrees F, making it suitable for a broad range of fluid-handling applications. An FKM sealing element is included. At 3.94 inches in diameter and 2.52 inches in length, this fitting is compact and built for reliable, code-compliant installations in demanding environments.

This flange fitting is intended for commercial and industrial piping applications where stainless steel construction and press-end connections are specified. Typical install scenarios include mechanical rooms, process piping, and hydronic systems where corrosion resistance and speed of installation are priorities. The press connection method reduces labor time compared to threaded or soldered alternatives, making it a practical choice for professional plumbing and mechanical contractors working under schedule constraints.

Key Features

• Press-style end connection eliminates threading, soldering, or welding at the joint
• 304 stainless steel construction provides corrosion resistance in commercial and industrial environments
• Rated to 200 psi for use in higher-pressure piping systems
• Temperature range of 0 to 250 degrees F covers most hydronic and fluid-handling applications
• Includes FKM sealing element for a complete, ready-to-press assembly
• Flange-type configuration for panel, wall, or equipment face connections

Compatibility

Designed as an OEM-style press flange fitting for 3/4-inch stainless steel press fitting systems in commercial and industrial piping applications. Verify press tool jaw compatibility with the press-end specification before installation.

Installation Notes

Installation should be performed by a licensed plumber or mechanical contractor familiar with press-fit piping systems. Shut off and depressurize the line before cutting or fitting. A compatible press tool with the correct jaw profile for the fitting diameter is required to achieve a proper seal. Consult applicable local plumbing codes and manufacturer press tool specifications before proceeding.
