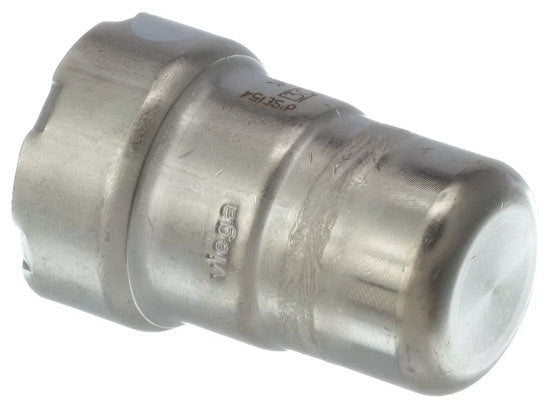

Pps 691514954004 MegaPress Cap 304 Stainless Steel (1 in / 5/PK) 95400

Product Description

PPS 691514954004 is a MegaPress cap manufactured in 304 stainless steel with a press end style for 1 in nominal pipe. The fitting is rated to 200 psi, operates from 0 to 250 deg F, and measures 2.43 in in length. It includes an FKM sealing element and is intended for commercial and industrial piping applications such as pressure systems and process lines.

• 304 stainless steel construction with press end style for 1 in nominal pipe
• Rated 200 psi; temperature range 0 to 250 deg F; includes FKM sealing element
• Compact length 2.43 in; packaged 5 per pack; meets ASTM A312 and listed approvals

Product Highlights

1 in MegaPress stainless steel cap, press connection, 200 psi rating, 0 to 250 deg F, includes FKM seal

Product Information

Standard Information

• Brand: PPS
• Manufacturer Part Number: 691514954004
• Country of Origin: Import

Technical Specifications

• Brand: PPS
• MPN: 691514954004
• Manufacturer: Viega
• Manufacturer Part Number: 95400
• Product Name: MegaPress cap
• Material: 304 stainless steel
• Size: 1 in nominal
• End Style: Press
• Fitting Connector Type: Cap
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Length / Dimensions: 2.43 in L
• Includes: FKM sealing element
• Application: Commercial and Industrial
• Category: Stainless Steel Press Fittings
• Package Quantity: 5/PK
• Weight: 0.3870 LB
• Type: Press fittings
• Certifications: ASTM A312; CRN 13492.5 A/B; IAPMO/UPC PS-117; ICC LC1002; TSSA/ASME B31.1/B31.3/B31.9
