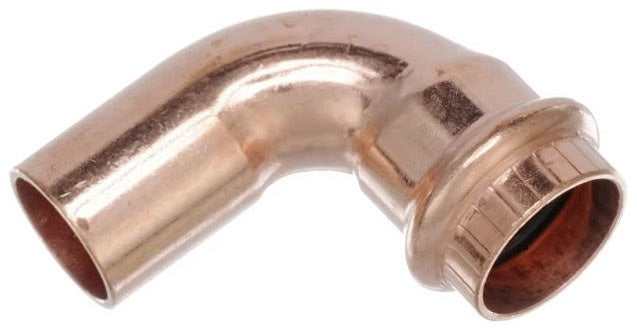

Pps 691514773476 90 Deg Street Elbow 1/2 in Copper

Product Description

The PPS 691514773476 is a 1/2-inch nominal 90-degree street elbow designed for copper press-fit piping systems. One end accepts a fitting (spigot) connection and the other accepts a press-style mechanical connection, eliminating the need for open flame or solder during installation. This fitting is used to make a 90-degree directional change in copper water or hydronic lines. It is installed by licensed plumbers and pipefitters working on residential and light commercial plumbing systems where press technology is specified or required.

This street elbow is suited for 1/2-inch copper press systems in residential potable water distribution, hydronic heating, and other closed-loop plumbing applications. The fitting x press end style allows it to be inserted directly into a standard copper fitting socket on one end while the opposite end is secured using a compatible press tool and jaw set. It is an imported copper fitting appropriate for new construction and retrofit work.

Key Features

• 90-degree directional change in a compact street elbow profile
• 1/2-inch nominal size fits standard copper tubing
• Fitting x press end style — one spigot end, one press end
• Copper construction for corrosion resistance in water service
• No soldering or open flame required for the press connection

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/2-inch nominal copper press piping systems using standard press-fit tooling and jaw sets.

Installation Notes

Installation of press fittings is performed by licensed plumbers in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before fitting installation. A compatible press tool with the correct jaw size for 1/2-inch copper press fittings is required to make a proper mechanical connection. Do not attempt to press a fitting that is wet or that contains water under pressure.
