Pps 691514197630 Nut Bolt Washer Set 4 Inch Galvanized

Product Description

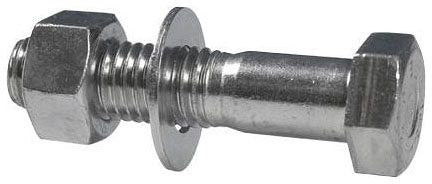

The PPS 691514197630 is a galvanized carbon steel nut, bolt, and washer set sized for 4-inch press fitting adapter flange applications. Each set includes one bolt, one nut, and one washer — all the hardware needed to secure a ProPress XL adapter flange connection. The galvanized finish provides corrosion resistance in wet mechanical environments. Rated to 200 psi and a temperature range of 0 to 250 degrees F, this hardware set is appropriate for the pressure and thermal demands common in commercial and residential hydronic and plumbing piping systems. Installation is handled by licensed plumbers and pipefitters working with press-fit systems.

This bolt set is designed for use with 4-inch Viega ProPress XL adapter flange applications. It is specifically called out for use with Viega ProPress XL Adapter Flange part numbers 81075 and 86077. Typical install scenarios include large-diameter press fitting connections in commercial plumbing, mechanical rooms, and hydronic heating systems where flanged adapter joints require dedicated fastener hardware.

Key Features

• Includes bolt, nut, and washer — complete fastener set in one package
• Galvanized carbon steel construction for corrosion resistance
• Rated to 200 psi working pressure
• Temperature rated from 0 to 250 degrees F
• Sized for 4-inch adapter flange connections
• 50-year warranty

Compatibility

Designed for use with Viega ProPress XL Adapter Flange part numbers 81075 and 86077 in 4-inch configurations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter familiar with press fitting systems and flange connection procedures. Shut off and depressurize the system before disassembling or installing any flanged connection. Follow applicable IPC and local plumbing code requirements for fastener torque and flange assembly. Inspect all hardware for damage before installation and do not reuse previously torqued fasteners.
