Powers Industries 7410SD1-PWR SBD 7410SD1-PWR POWER-STUD+ SD1 3/8

Product Description

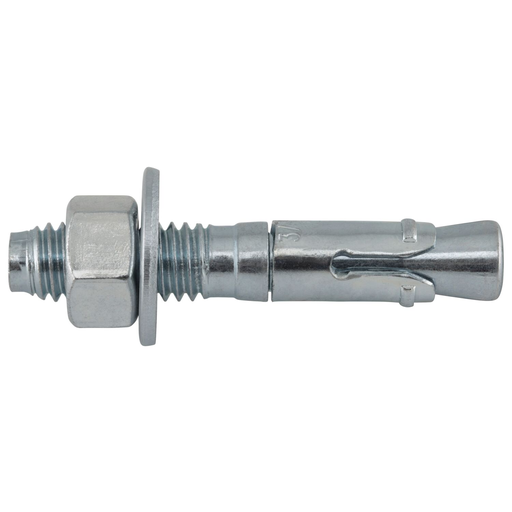

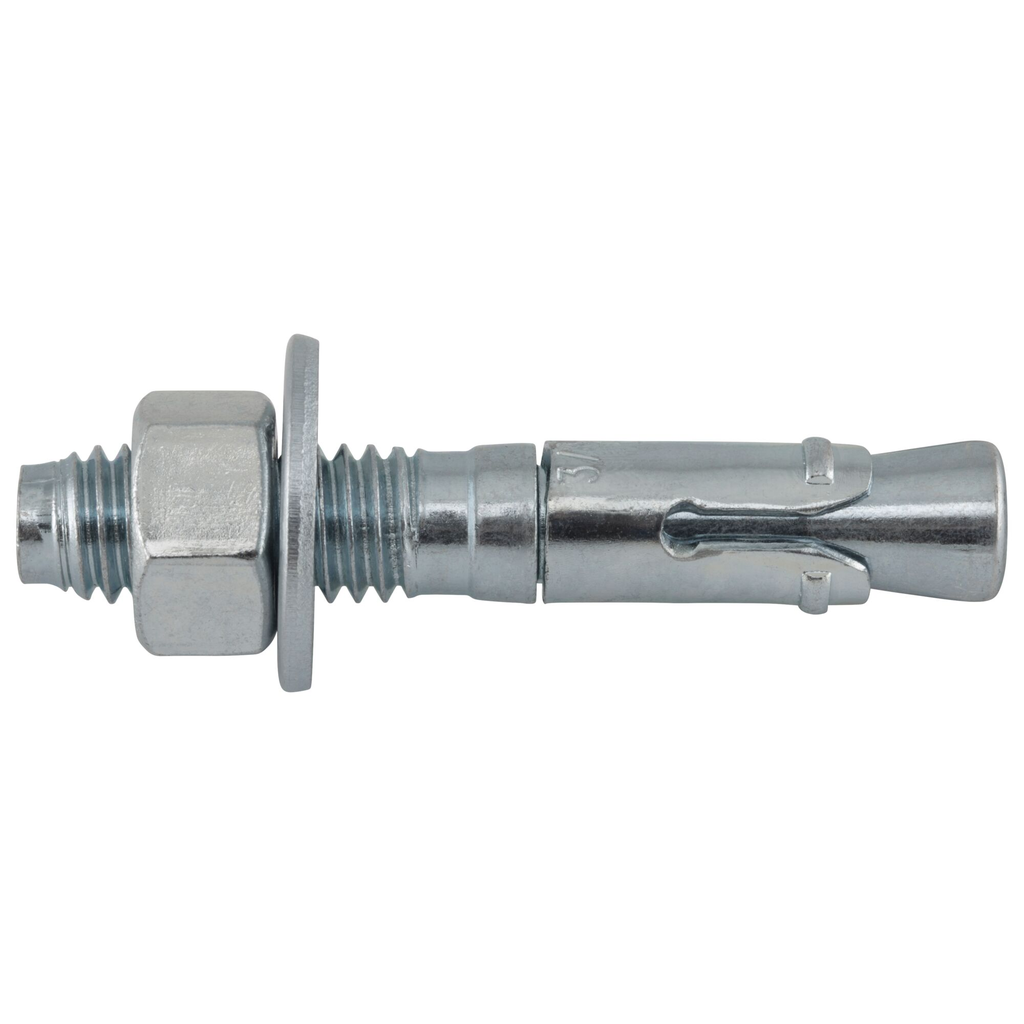

The Powers Industries 7410SD1-PWR SBD 7410SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled wedge expansion anchor. It provides reliable performance in cracked and uncracked concrete. This anchor works well with normal-weight concrete, sand-lightweight concrete, concrete over steel decks, and grouted masonry.

• Includes nut and washer for installation
• Suitable for interior applications in low corrosion environments
• Features shear strength of 2540 pounds and tensile strength of 2685 pounds

Product Highlights

This anchor is designed for various construction needs, ensuring high safety standards during installation. Its zinc-plated carbon steel construction enhances durability.

Product Information

Standard Information

• Brand: Powers Industries
• Sub Brand: Power-Stud+ SD1

Technical Specifications

• Type: Fully Threaded
• Material: Steel
• Finish: Zinc
• Diameter: 3/8 Inch
• Thread Size: 3/8-16 UNC
• Thread Type: UNC
• Thread Length: 7/8 inch
• Minimum Embedment Depth: 1-5/8 inch
