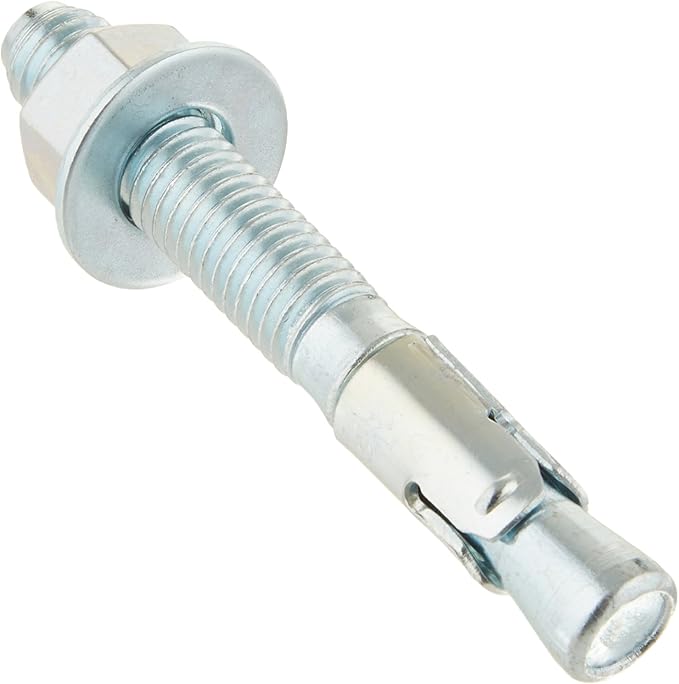

Powers 7422SD1-PWR Power-Stud+ SD1 Wedge Expansion Anchor 1/2 x 3-3/4 Inch

Product Description

The POWERS 7422SD1-PWR Power-Stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor designed for consistent performance in cracked and uncracked concrete. It is suitable for use in normal-weight concrete, structural sand-lightweight concrete and concrete over metal deck. The anchor is manufactured with a zinc plated carbon steel body and expansion clip, and includes a nut and washer.

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading
• Fully threaded, torque-controlled, wedge expansion anchor
• Designed for consistent performance in cracked and untracked concrete
• Manufactured with a zinc plated carbon steel body and expansion clip

Product Highlights

The Power-Stud+ SD1 anchor is designed for consistent performance in cracked and uncracked concrete.

Product Information

Standard Information

• Brand: POWERS
• Manufacturer Part Number: 7422SD1-PWR
• Country of Origin: United States

Technical Specifications

• Catalog Number: 7422SD1-PWR
• Anchor Diameter: 1/2"
• Useable Length: 3-3/4"
• Thread Length: 2"
• Pack Qty: 50
• Manufacturer: Powers Fastening Innovations
• Part Number: 7422SD1
• Finish: steel
• Material: carbon_steel, zinc plated
• Item Package Quantity: 1
• Cutting Diameter: 1/2 Inches
• Measurement System: inch
• Usage: Concrete
• Batteries Included?: No
• Batteries Required?: No
• Assembled Diameter: 1/2 Inches
• Brand: Powers Fasteners
• Manufacturer Part Number: 7422SD1-PWR
• Modified Item: No
• UPC: 075352776071
