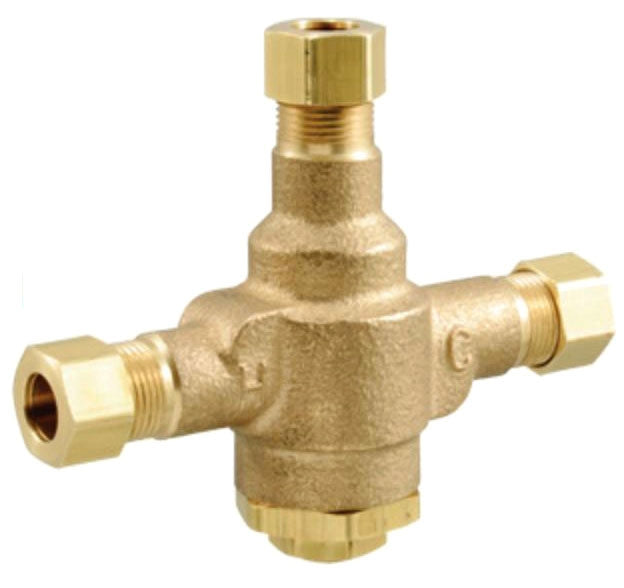

Powers 6552066 Tempering Valve 3/8 Compression LFE480-10

Product Description

The Powers 6552066 is a lavatory thermostatic tempering valve designed for effective temperature control in bathroom sinks.

• Adjustable temperature selection helps to set safe water temperatures.
• Made with brass material for durability and resistance to corrosion.
• Meets standards such as ASSE 1017, IAPMO, CSA B125.3, CUPC, and ATA.

Product Highlights

This product includes advanced thermal actuator technology for improved performance, especially at low flow rates.

Product Information

Standard Information

• Brand: Powers
• Manufacturer Part Number: 6552066

Technical Specifications

• Type: Thermostatic
• Nominal Size: 3/8 Inch
• Body Material: Brass
• Flow Rate: 0.5 GPM (Minimum)
• Set Temperature Range: 80 to 120 Deg F
• Temperature Rating: 180 Deg F
• Pressure Rating: 125 PSI
• Inclusions/Features: Advanced Thermal Actuator, Adjustable Temperature Selection with Lock Nut, Integral Check, Screen
• Application: Bathroom Sink, Non-Health Hazard
• Height: 3-3/6 Inch
• End Connection: Compression x Compression x Compression
• End to End Distance: 3-11/16 Inch
• Base to Inlet Dimension: 1-1/4 Inch
• Inlet to Mixing Outlet Dimension: 1-1/4 Inch
