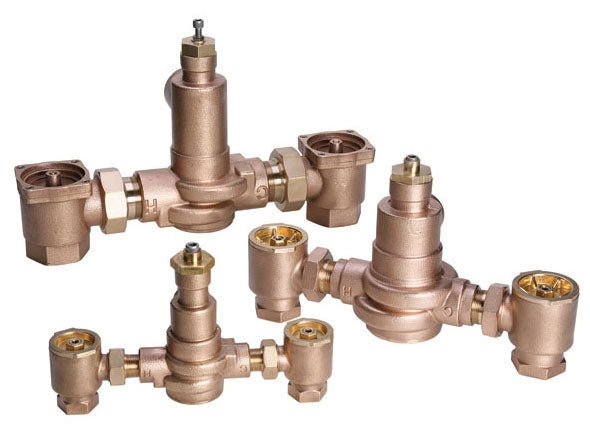

Powers 6550049 Master Tempering Valve 3/4 Inch LFMM431-1

Product Description

The Powers 6550049 is a thermostatic master tempering valve designed for commercial and institutional applications. This valve features a nominal size of three-fourths inches with female threaded connections on both ends. The innovative design includes advanced paraffin actuation technology for precise temperature control.

• Flow rate of 42 GPM
• Pressure rating of 125 PSI
• Temperature range of 90 to 160 degrees Fahrenheit

Product Highlights

The Powers valve is ideal for ensuring consistent water temperature in commercial settings. Its lead-free brass construction ensures compliance with safety standards.

Product Information

Standard Information

• Brand: Powers
• UPC: 68640861463

Technical Specifications

• Type: Thermostatic
• Nominal Size: 3/4 Inch
• End Connection: Female Threaded x Female Threaded
• Base to Inlet Dimension: 1-7/8 Inch
• Body Material: Rough Bronze Brass
• Flow Rate: 42 GPM
• Temperature Rating: 90 to 160 Deg F
• Pressure Rating: 125 PSI
• Applicable Standard: ASSE 1017, CSA B125, ATALead-Free
• Overall Dimension: 11-5/8 Inch Length x 7-1/4 Inch Height
• CV Rating: 6.32 Gallon
