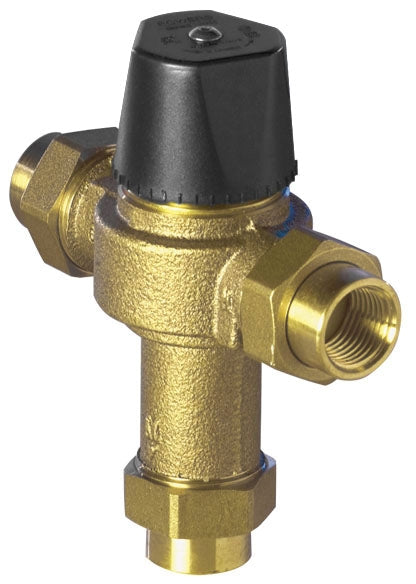

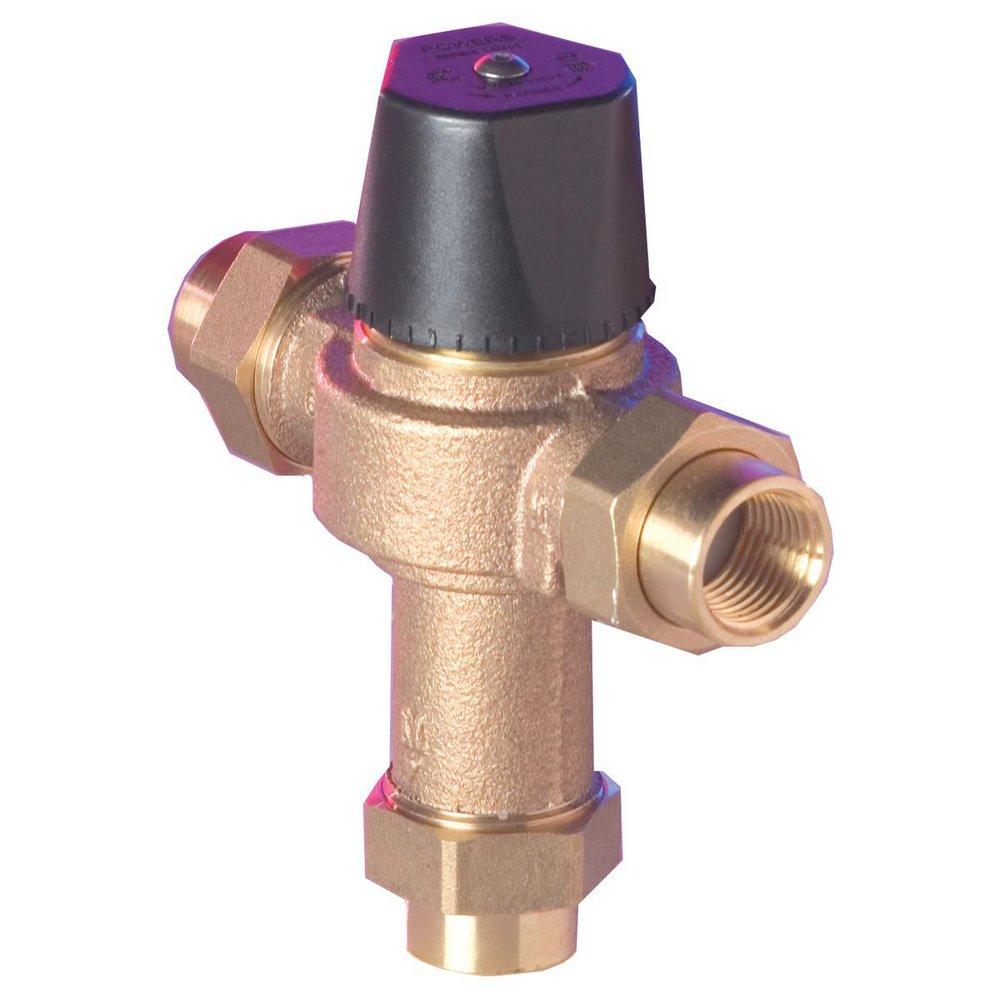

Powers 6550030 HydroGuard LFLM495 Mixing Valve 1/2 Inch

Product Description

The Powers 6550030 HydroGuard LFLM495 is a thermostatic mixing valve designed to provide precise temperature control. It features a nominal size of one-half inch with three union female threaded connections for easy installation.

• Lead-free construction for safe water delivery.
• Temperature adjustment handle with a locking mechanism.
• Corrosion-resistant internal components.

Product Highlights

This mixing valve is suitable for bathroom sink applications and complies with relevant standards including ASSE 1069, 1070, and 1017. It includes advanced thermal actuator technology that ensures performance even at low flow rates.

Product Information

Standard Information

• Manufacturer: Powers
• UPC: 68640861444

Technical Specifications

• Type: Thermostatic
• Flow Rate: 0.5 GPM (Minimum)
• Set Temperature Range: 80 to 120 Deg F
• Temperature Rating: 200 Deg F
• Pressure Rating: 125 PSI
• Body Material: Cast Copper Silicon Alloy
• End Connection: Union Female Threaded x Union Female Threaded x Union Female Threaded
• End to End Distance: 4-7/8 Inch
• Base to Inlet Dimension: 3-3/16 Inch
• Inlet to Mixing Outlet Dimension: 3-3/16 Inch
