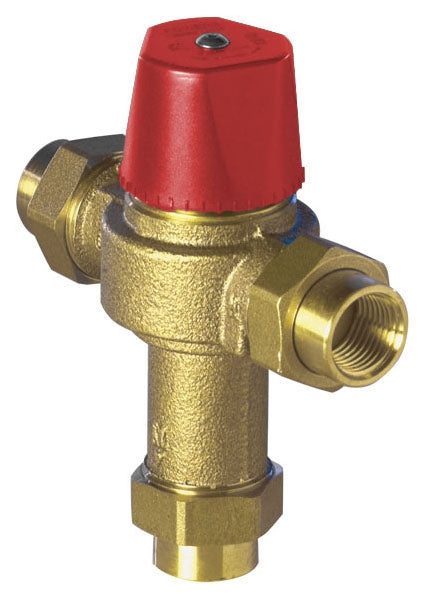

Powers 6550000 LFLM490-1 1/2 Threaded Connection 90-160 Temp Range Mixing Valve

Product Description

The Powers 6550000 is a thermostatic tempering valve designed for hot water distribution. This valve features a half-inch nominal size with union female threaded connections. The set temperature range for this valve is between ninety to one hundred sixty degrees Fahrenheit. It effectively controls the flow of water, ensuring safety and efficiency in your plumbing system.

• Temperature rating of two hundred degrees Fahrenheit
• Pressure rating of one hundred twenty-five PSI
• Brass body construction for durability

Product Highlights

Brass construction and integral checks ensure reliability and compliance with lead-free requirements. This valve is ideal for various plumbing applications, especially those that involve hot water.

Product Information

Standard Information

• Brand: Powers
• Model Number: LFLM490-1

Technical Specifications

• Type: Thermostatic
• Flow Rate: 0.5 GPM (Minimum)
• Set Temperature Range: 90 to 160 Deg F
• Pressure Rating: 125 PSI
• Temperature Rating: 200 Deg F
• Body Material: Brass
• End Connection: Union Female Threaded x Union Female Threaded x Union Female Threaded
• Overall Height: 5-7/16 Inch
• CV Rating: 3.42 Gallon
• Applicable Standard: ASSE 1017, CSA B125, IAPMO, UPC
• Application: Hot Water Distribution
• End to End Distance: 4-7/8 Inch
• Inclusions/Features: Integral Check, Screen
