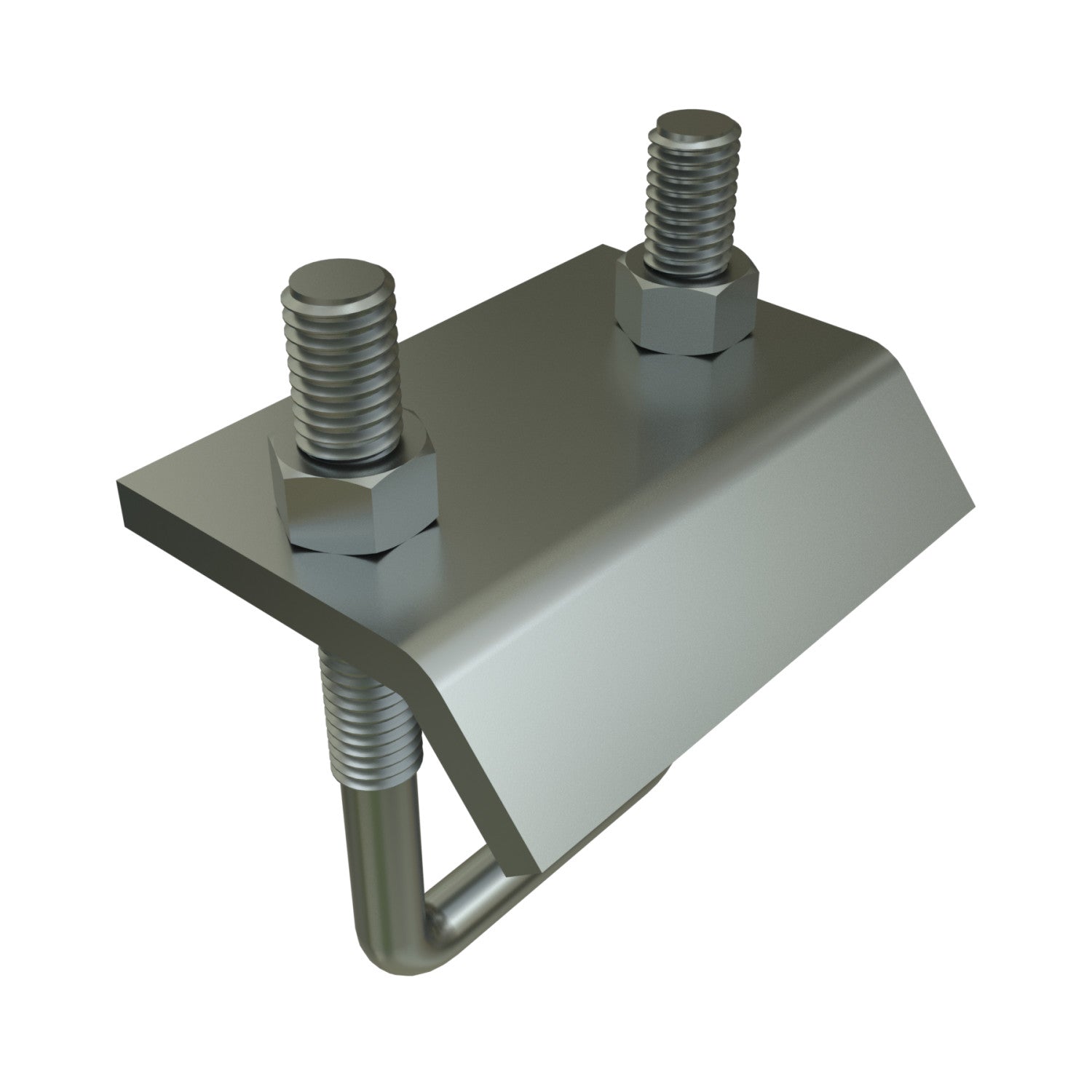

Power-Strut P2785 EG Strut Beam Clamp 3 x 3-3/4 x 2-1/4

Product Description

The POWER-STRUT P2785 EG beam clamp is a steel component designed to support up to 2,000 lbs per pair when used in conjunction with compatible channels. Measuring 3 x 3-3/4 x 2-1/4 inches, this electrogalvanized strut beam clamp offers robust performance for various applications. It features a design load of 1,000 lbs per clamp and is compatible with channels like P1000, P1100, P3000, P3300, P3301, P4000, P4001, P4100, and P4101.

• Supports a vertical design load of 1,000 lbs per clamp, totaling 2,000 lbs per pair.
• Compatible with various channels including P1000, P1100, P3000, P3300, P3301, P4000, P4001, P4100, and P4101.
• Offers both vertical and horizontal load capacities for versatile mounting.

Product Highlights

Electrogalvanized steel beam clamp with a 2,000 lbs per pair load capacity, compatible with multiple strut channels.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P2785 EG

Technical Specifications

• Catalog Number: P2785 EG
• Width: 3 in
• Height: 3.75 in
• Material Type: Steel
• Length: 2.25 in
• Surface Finish: Electrogalvanized
• Design Load (each): 1,000 lbs
• Hole Diameter: 9/16 in
• Hole Spacing (From End): 13/16 in
• Hole Spacing (On-Center): 1 7/8 in
• Thickness: 1/4 in
• Base Metal Standard: ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635
• Electrogalvanized Finish Standard: ASTM B633, Type III SC1
