Power-Strut P1796S EG Strut Beam Clamp 3-1/2 inchesx 3-1/2 inchesx 1-3/4 inches

Product Description

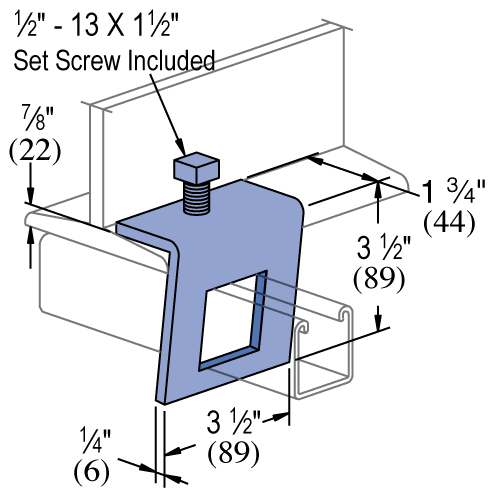

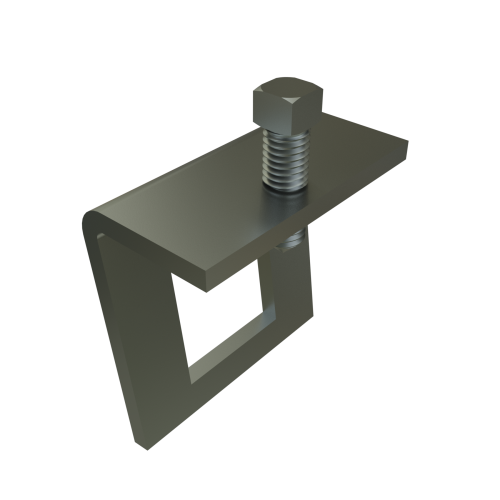

The POWER-STRUT P1796S EG Strut Beam Clamp is a heavy-duty steel component designed for securing beams. This electrogalvanized clamp measures 3-1/2"x 3-1/2"x 1-3/4" and supports a vertical design load of 500 lbs per clamp. It is engineered to fit beam flanges up to 7/8 inch, making it suitable for various construction and industrial applications requiring robust beam attachment.

• Supports a vertical design load of 500 lbs per clamp; must be used in pairs.
• Accommodates beam flange thickness up to 7/8 inch.
• Includes a set screw for secure installation.

Product Highlights

Heavy-duty electrogalvanized steel beam clamp for secure structural support, featuring a 500 lbs load capacity and a set screw.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1796S EG

Technical Specifications

• Catalog Number: P1796S EG
• Description: Strut Beam Clamp, 3-1/2"x 3-1/2"x 1-3/4", EG
• Width: 3.5 in
• Height: 3.5 in
• Material: Steel
• Length: 1.75 in
• Finish: Electrogalvanized
• Brands: Unistrut, Power-Strut
• Load Capacity: 500 lbs per clamp
• Max Beam Flange Thickness: Up to 7/8 inch
• Set Screw Included: Yes
