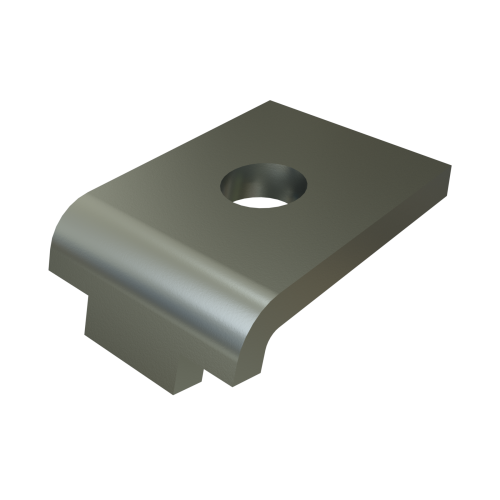

Power-Strut P1386 EG strut beam clamp 1-5/8 inchesx 27/32 inchesx 2-1/32 inches

Product Description

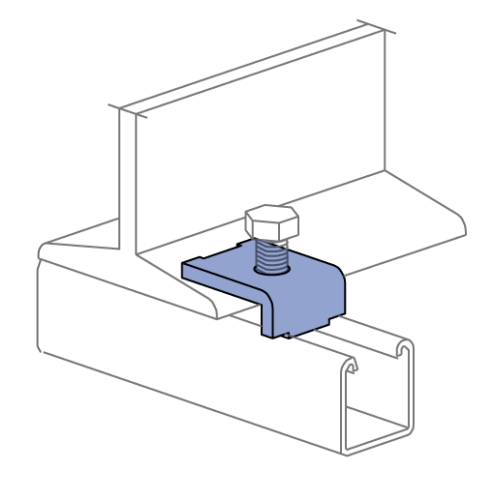

The POWER-STRUT P1386 EG Strut Beam Clamp is designed to securely attach Atkore channel perpendicular to beams. This electrogalvanized steel clamp measures 1.625 inches in width, 0.84375 inches in height, and 2.031 inches in length, making it suitable for use with 12 or 14 gauge channel. It provides a robust solution for structural framing applications, ensuring stable connections.

• Vertical design load per table; must be used in pairs for proper function.
• Compatible with 12 or 14 gauge channel for versatile application.
• Includes a set screw; requires a 1/2" screw and channel nut for attachment.

Product Highlights

Electrogalvanized steel strut beam clamp for secure perpendicular channel-to-beam connections.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1386 EG

Technical Specifications

• Width: 1.625 in
• Height: 0.84375 in
• Material: Steel
• Length: 2.031 in
• Finish: Electrogalvanized
