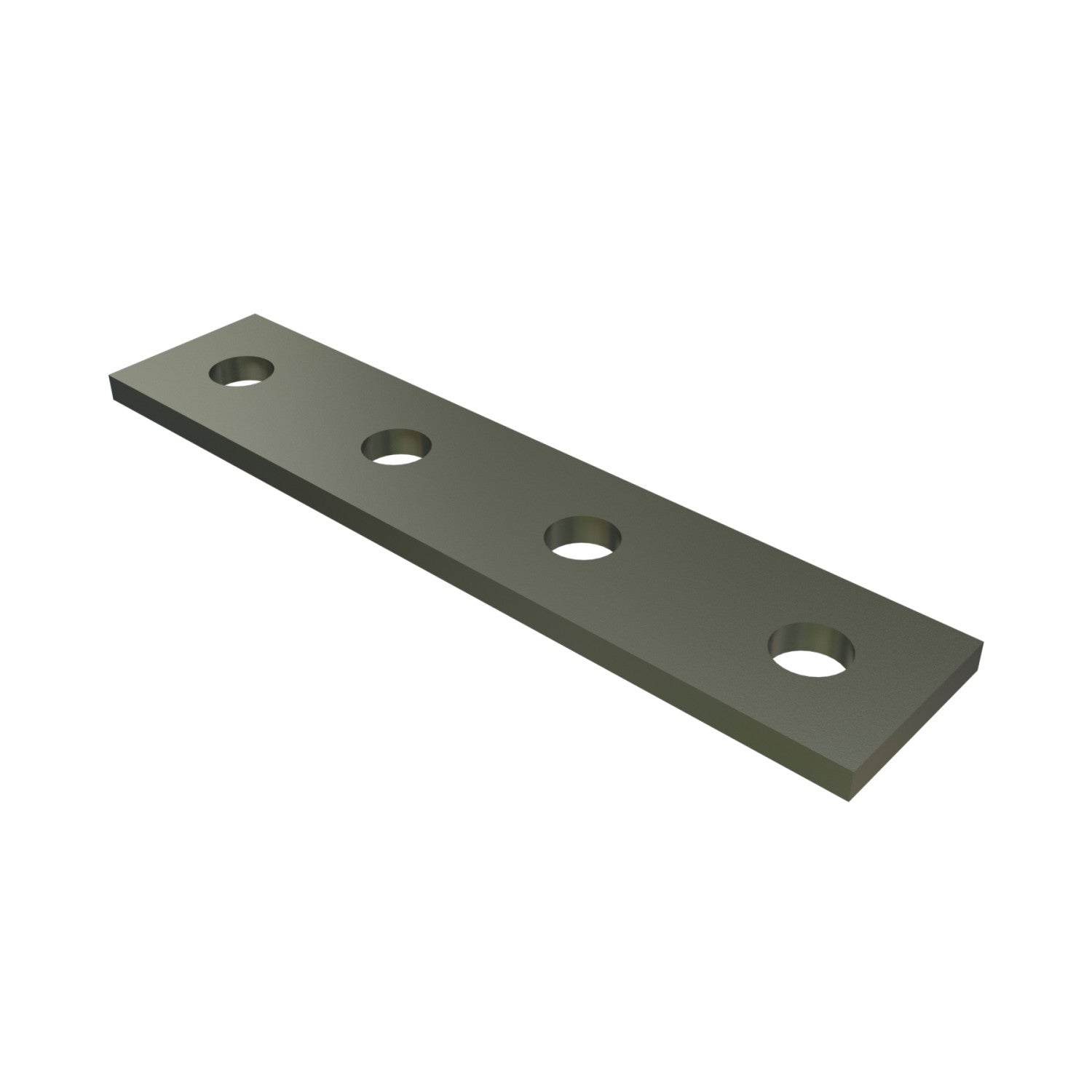

Power-Strut P1067 EG 4-hole flat plate fitting 7-1/4 inchesx 1/4 inchesx 1-5/8 inches

Product Description

The POWER-STRUT P1067 EG is a 4-hole electrogalvanized flat plate fitting designed for joining metal framing components. This sturdy steel fitting, with a width of 1 5/8" and a thickness of 1/4", provides flexible connection methods and configurations for various support structures. It features 9/16" diameter holes with 1 7/8" on-center spacing, ensuring secure fastening in construction and industrial applications.

• Steel construction meeting ASTM A1011 SS GR 33 standards.
• Designed with 9/16" diameter holes for 1/2" fasteners.
• Provides a simple, sturdy solution for joining metal framing components.

Product Highlights

Sturdy electrogalvanized steel flat plate fitting for versatile metal framing connections.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1067 EG

Technical Specifications

• Hole Diameter: 9/16" (14mm)
• Hole Spacing (From End): 13/16" (21mm)
• Hole Spacing (On-Center): 1 7/8" (48mm)
• Width: 1 5/8" (41mm)
• Thickness: 1/4" (6.4mm)
• Material Type: Steel
• Surface Finish: Electrogalvanized
• Electrogalvanized (EG) Conformance: ASTM B633, Type III SC1
• Base Metal Conformance: ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635
• UPC: 70231650129
• UNSPSC: 31162810
