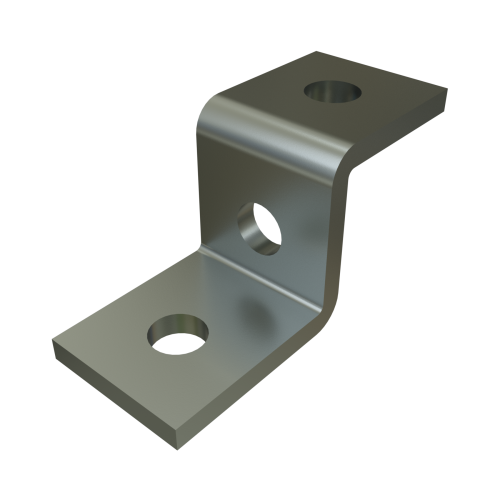

Power-Strut P1045 EG 3 hole, Z shape fitting

Product Description

The POWER-STRUT P1045 EG is an electrogalvanized Z-shape strut fitting, crafted from steel conforming to ASTM A1011 SS GR 33. This versatile fitting features three 9/16" (14mm) diameter holes, spaced 1 7/8" (48mm) on-center, designed for 1/2 inch fasteners. With a 1/4" (6.4mm) thickness and a width of 1 5/8" (41mm), it provides strong, reliable support for complex framing configurations in electrical and mechanical installations, ensuring secure connections at varied angles.

• Constructed from steel conforming to ASTM A1011 SS GR 33.
• Features three 9/16" (14mm) diameter holes for 1/2 inch fasteners.
• Electrogalvanized finish meets ASTM B633, Type III SC1 standards.

Product Highlights

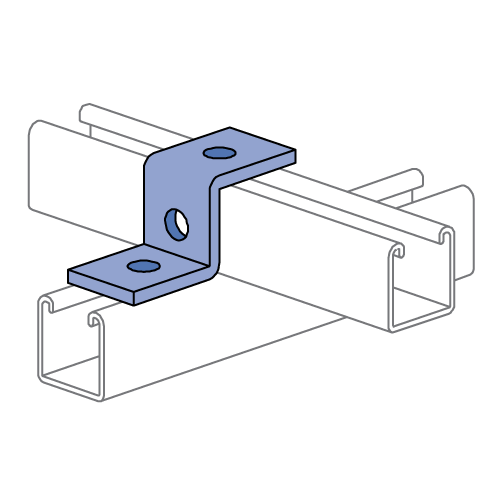

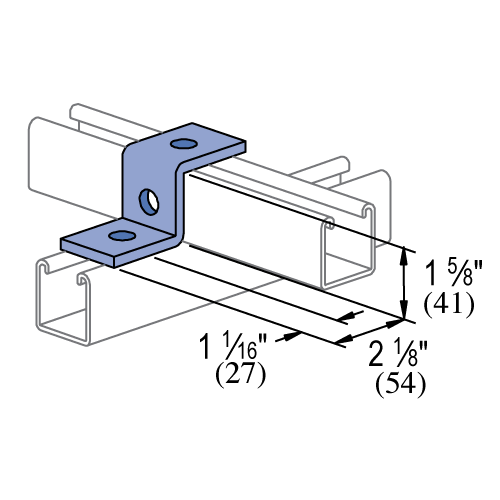

Durable Z-shape fitting offers strong, versatile support for complex framing configurations and secure connections.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1045 EG

Technical Specifications

• Hole Diameter: 9/16" (14mm)
• Hole Spacing (From End): 13/16" (21mm)
• Hole Spacing (On-Center): 1 7/8" (48mm)
• Width: 1 5/8" (41mm)
• Thickness: 1/4" (6.4mm)
• Base Material: Steel (ASTM A1011 SS GR 33)
• Surface Finish: Electrogalvanized (ASTM B633, Type III SC1)
• Part Height: 1.875 inches
• Part Length: 3.781 inches
• Compatible System: Unistrut
