Power-Strut P1028 EG Strut Fitting 5-3/8 inchesx 1/4 inchesx 5-3/8 inches

Product Description

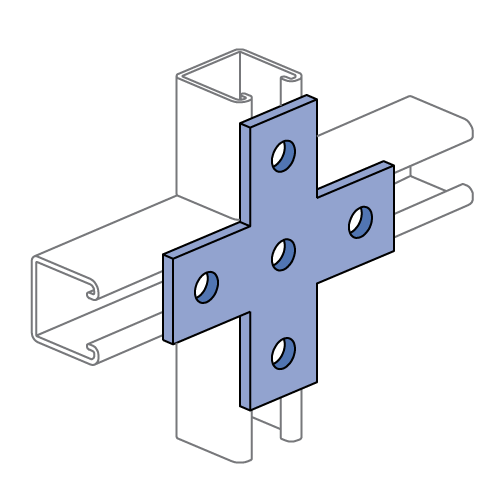

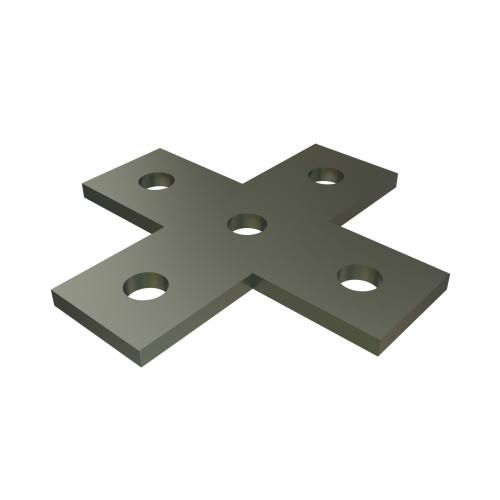

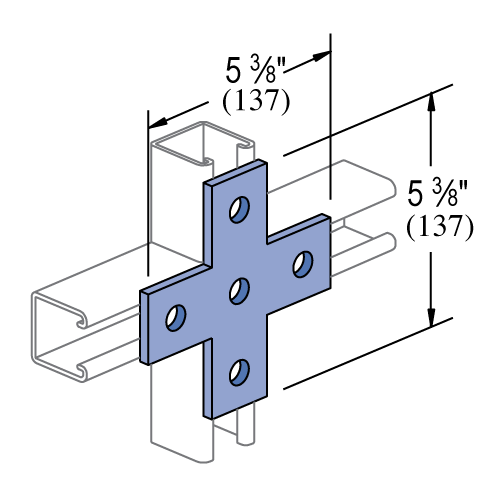

POWER-STRUT P1028 EG is a steel flat plate fitting designed for strut connections. This electrogalvanized fitting measures 5-3/8 inches in length and width, with a 1/4 inch thickness, and features 5 holes for 1/2 inch fasteners. Constructed from ASTM A1011 SS GR 33 steel, it provides a sturdy solution for joining metal framing components.

• Constructed from ASTM A1011 SS GR 33 steel for durability.
• Features 5 holes with a 9/16 inch diameter, suitable for 1/2 inch fasteners.
• Electrogalvanized finish conforms to ASTM B633, Type III SC1, offering corrosion resistance.

Product Highlights

This flat plate fitting provides a versatile and dependable connection for various support structures.

Product Information

Standard Information

• Brand: POWER-STRUT
• Manufacturer Part Number: P1028 EG
• Country of Origin: USA

Technical Specifications

• MPN: P1028 EG
• Material: Steel
• Steel Grade: ASTM A1011 SS GR 33
• Finish: Electrogalvanized (EG) conforms to ASTM B633, Type III SC1
• Width: 5.375 in
• Length: 5.375 in
• Thickness: 0.25 in
• Hole Diameter: 9/16 inch (14mm)
• Hole Spacing (From End): 13/16 inch (21mm)
• Hole Spacing (On-Center): 1 7/8 inch (48mm)
