Power Mod WMM41125R Siemens WMM41125R 120/240 VAC 125 Amp 1-Phase 65 kA 3-Wire 4-Jaw 4-Position No Bypass Ringless Meter Stack

Product Description

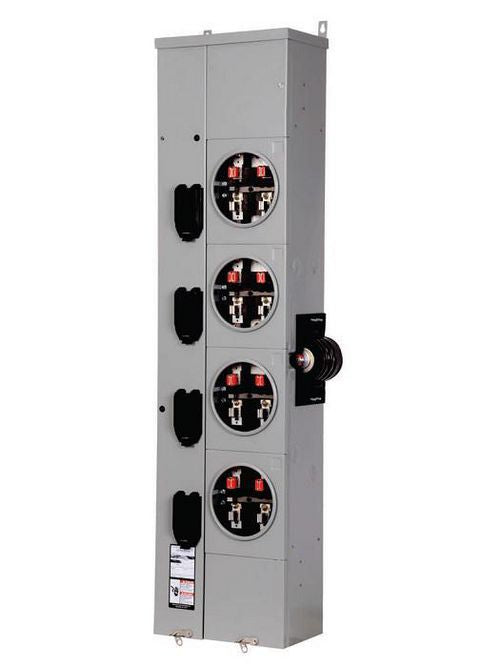

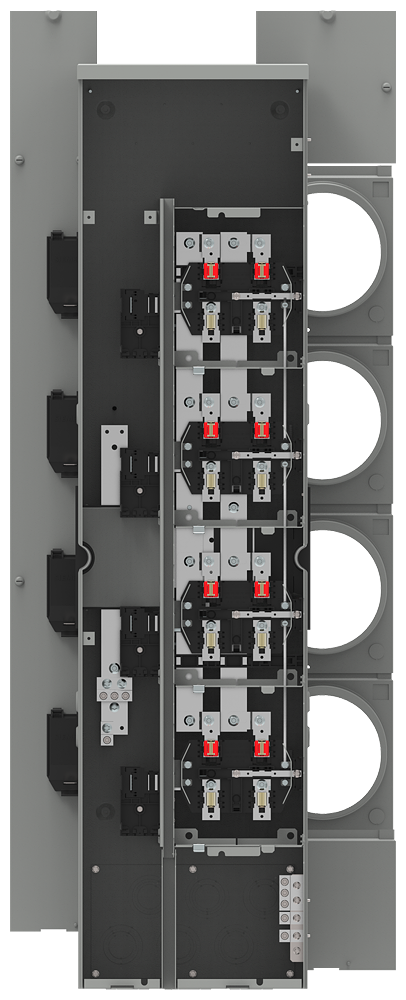

The Siemens WMM41125R is a reliable residential meter stack designed for efficient power distribution. This model operates at 120/240 VAC and handles a maximum of 125 amps. The meter stack features a ringless design with four jaws, accommodating four meter positions. The unit is suitable for outdoor installations due to its durable construction and includes provisions for three-wire incoming and outgoing connections.

• Designed for residential applications
• Features thermal magnetic trip range
• Plug-in connection type with 6 holes

Product Highlights

This Siemens meter stack supports modular residential metering and includes features for easy installation and maintenance.

Product Information

Standard Information

• Brand: Power Mod
• Manufacturer: Siemens

Technical Specifications

• Voltage: 120 Volt
• Amperage: 125 Amp
• Trip Range: Thermal Magnetic
• Cable Entry: THRU-BUS
• Number of Holes: 6 Hole
• Number of Poles: 2 Pole
• Interrupt Rating: 65 AIC
• Dimensions: 13.09 in (Width) x 52.312 in (Height) x 7.69 in (Length)
