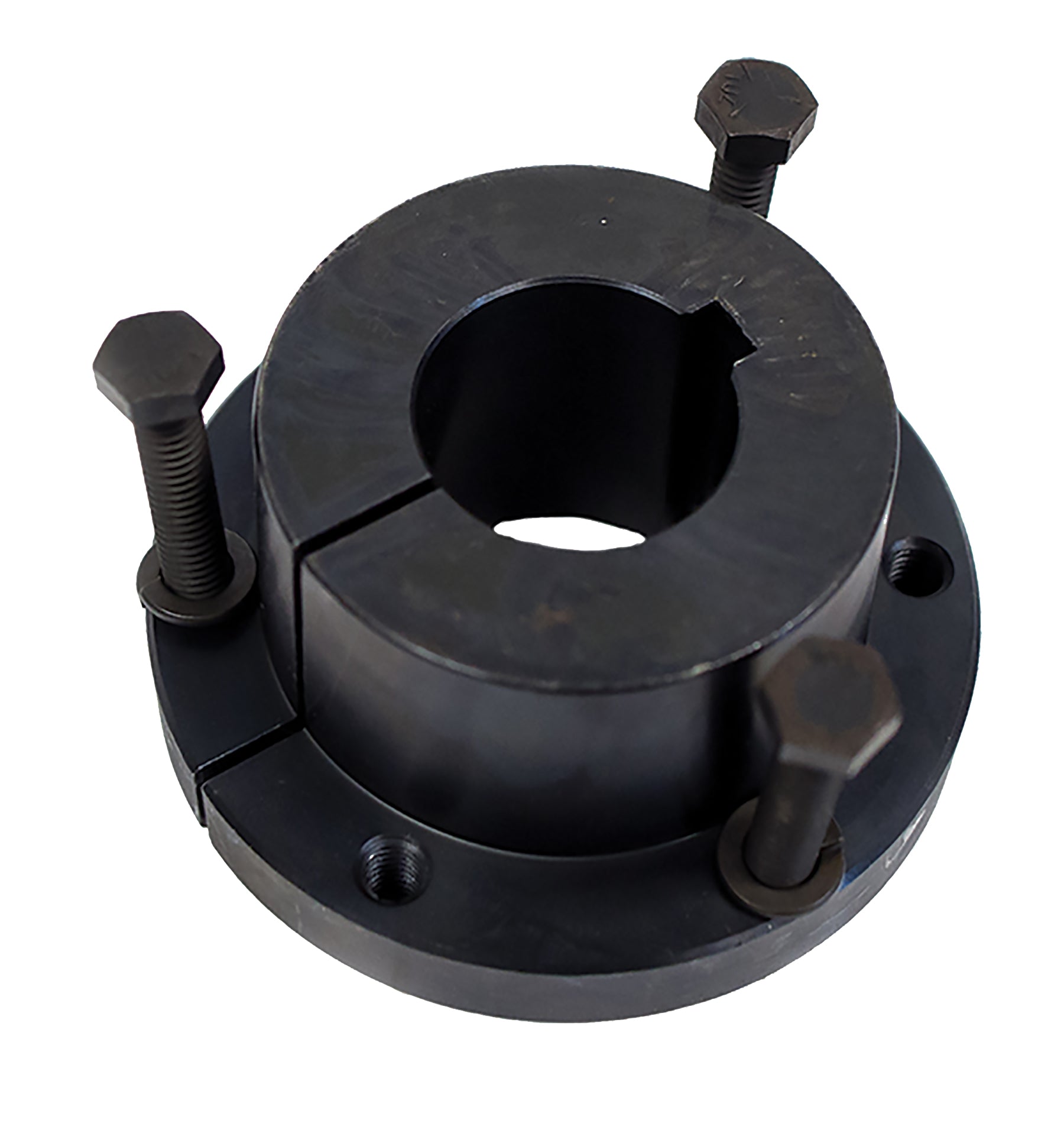

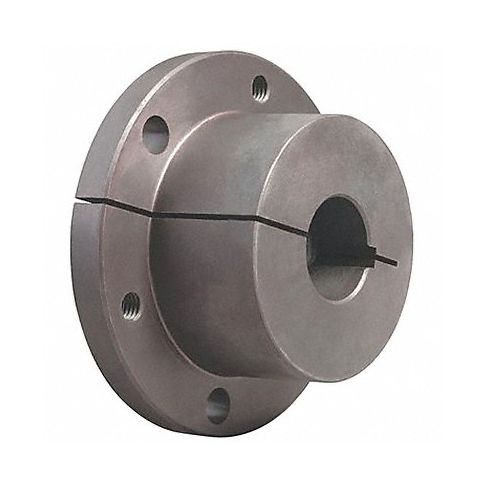

POWER DRIVE SK-1-7/8 QD Bushing

Product Description

The POWER DRIVE SK-1-7/8 is a Quick Detachable bushing. Its bore size measures one and seven-eighths inches, making it versatile for various applications. This bushing is made from steel or cast iron and features a black oxide finish. It is designed for reliable mounting with bolts.

• Bore size: 1-7/8 inch
• Material: Steel or Cast Iron
• Mounting Type: Reverse

Product Highlights

The POWER DRIVE SK-1-7/8 offers durability and ease of use across different settings.

Product Information

Standard Information

• Manufacturer Part Number: SK-1-7/8
• Bushing Size: SK

Technical Specifications

• Bore Type: Finished Bore
• Bore Diameter: 1.875 inches
• Keyway Size: 1/2 x 1/4 inches
• Finish: Black Oxide
• Screw Torque: 180 in-lb
• Barrel Diameter: 2.812 inches
• Barrel Length: 1.375 inches
• Storage Dimension Height: 1.9375 inches
• Bolt Circle Diameter: 3.313 inches
• Number Of Bolt Holes: 3
• Screw Thread Size: 5/16-18 inches
• Screw Length: 2 inches
• Mounting Type: Reverse
• Torque Capacity: 7,000 lb/in
• Weight: 2.00 lb
