POWER DRIVE SK-1-1/2 QD Bushing

Product Description

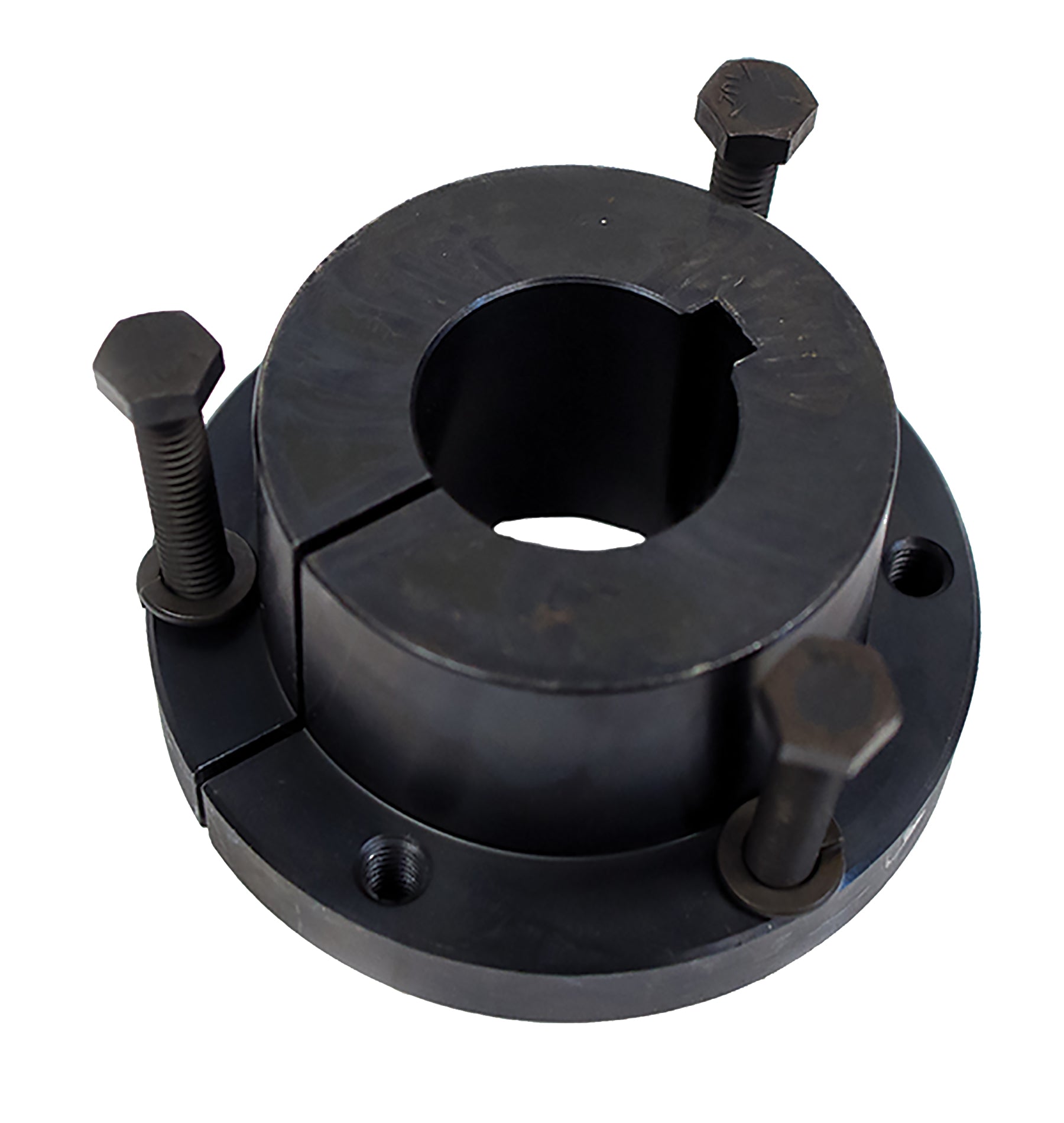

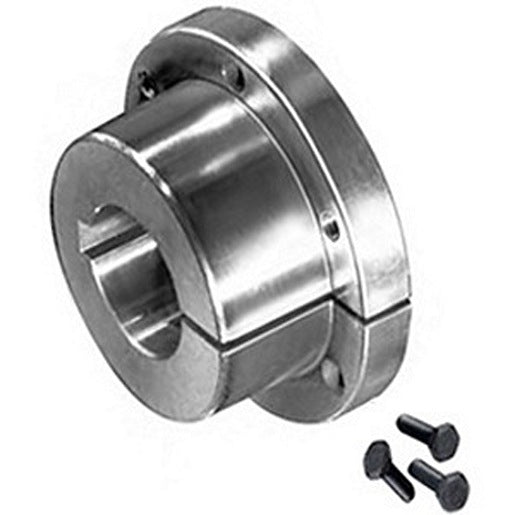

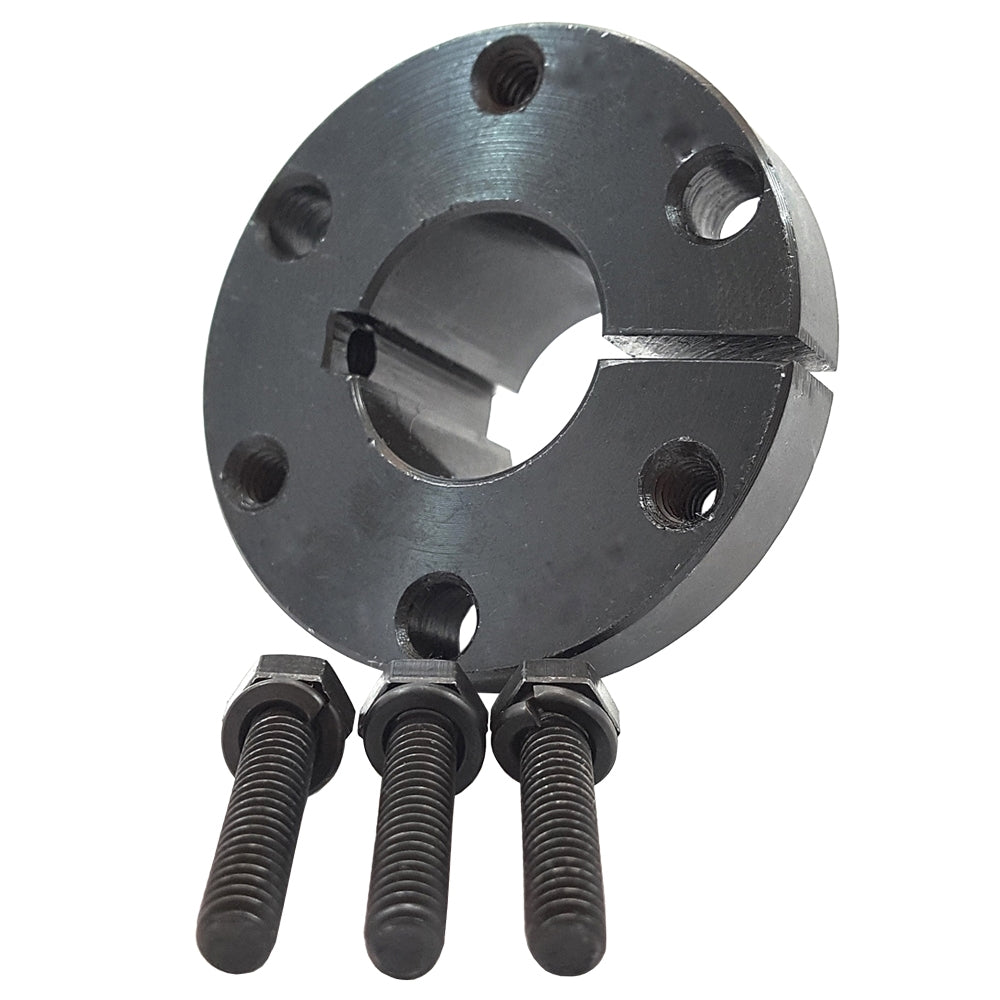

The POWER DRIVE SK-1-1/2 is a Quick Detachable (QD) bushing designed for efficiency. This bushing features a one and a half inch bore and is part of the SK bushing series. Its split barrel and flange design enhance usability for easy installation and removal.

• Bore size: 1-1/2 inch
• Bushing style: Quick Detachable (QD)
• Material: Steel with black oxide finish

Product Highlights

This bushing is suitable for various mechanical applications, ensuring reliable performance in connecting and disconnecting components quickly.

Product Information

Standard Information

• Manufacturer Part Number: SK-1-1/2
• Bushing Series: SK

Technical Specifications

• Bushing Style: QD
• Bore: 1.5 inch | 38.1 millimeter
• Keyway: Yes
• Material: Steel
• Finish: Black oxide
• Outside Diameter: 2.812 inches | 71.425 millimeters
• Length Thru Bore: 1.938 inches | 49.225 millimeters
• Flange Thickness: 9/16 inch
• Maximum OD of Taper: 2.812 inches
• Flange OD: 3-7/8 inches
• Length Less Flange: 1-3/8 inches
• Overall Length: 1-15/16 inches
• Bolt Circle Diameter: 3.313 inches
• Bolt Size: 5/16-18 x 2
• Cap Screw Quantity: 3
• Recommended Wrench Torque: 10 lb-ft
• Weight: 2 lb
• Key Seat (Inch Bores): 3/8 x 3/16
• Torque Capacity: 7,000 lb/in
