POWER DRIVE P1-5/8 Split Taper Bushing

Product Description

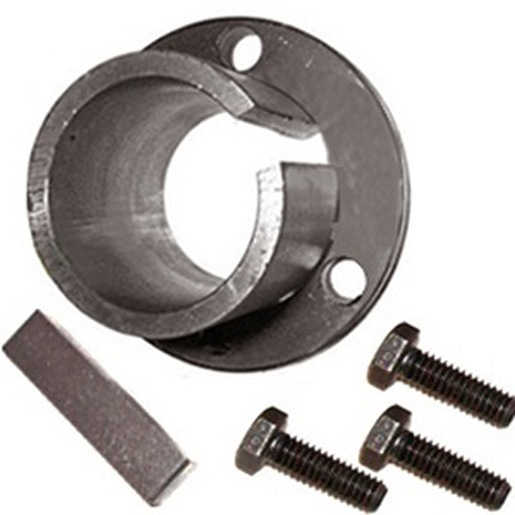

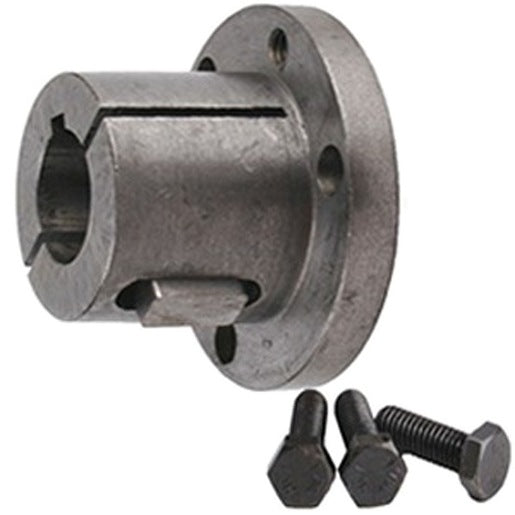

The POWER DRIVE P1-5/8 Split Taper Bushing is made from steel and is suitable for keyed shaft applications. The split design allows for easy mounting and dismounting. Key specifications include a bore diameter of five-eighths inches, a bolt circle diameter of two point forty-four inches, and an overall diameter of three inches. This product comes with cap screws for installation.

• Bore diameter is 5/8 inch.
• Features a split taper design.
• Constructed of steel.

Product Highlights

This bushing is designed for efficiency in keyed shaft applications, providing stability and secure installation.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: P1-5/8

Technical Specifications

• Bushing Type: Split Taper
• Bore Diameter: 5/8 inches
• Bolt Circle Diameter: 2.44 inches
• Overall Diameter: 3 inches
• Material: Steel
• For Shaft Type: Keyed
• Includes: (3) Cap Screws
• Fastener Tightening Torque: 192 in-lb
• Flange Thickness: 13/32 inches
• Keyway Depth: 3/32 inches
• Keyway Width: 3/16 inches
• Large Barrel Diameter: 1.938 inches
• Length Less Flange: 1.531 inches
• Overall Length: 1.938 inches
• Small Barrel Diameter: 1.856 inches
• Taper: 3/4 inch per ft
• Outside Diameter: 1.938 inches
• Weight: 0.77 lbs
