POWER DRIVE BK95H Single Groove Cast Iron Sheave

Product Description

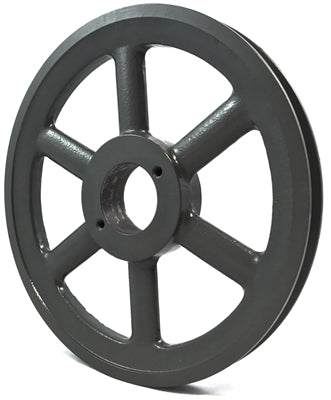

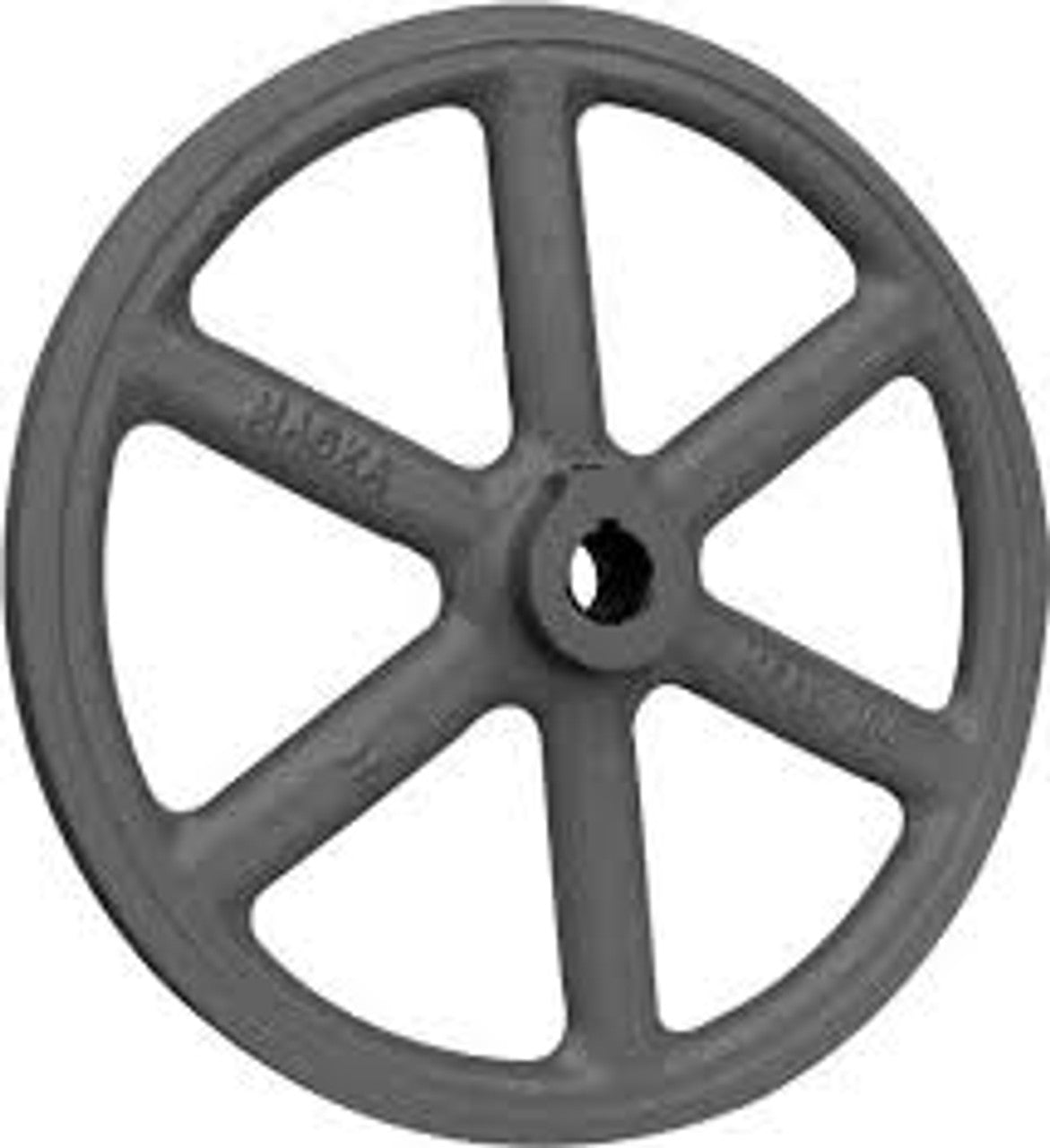

The POWER DRIVE BK95H is a single-groove sheave made from cast iron. It is suitable for shaft mounting and belongs to the Masterdrive family. This sheave has an outer diameter of nine and a quarter inches and meets ARPM Standard IP20. It is designed to work with A, 4L, B, 5L, AX, BX, AA, and BB belts. The sheave utilizes an H-Series Bushing and is dynamically balanced for enhanced performance.

• Constructed from high-grade 35 cast iron for durability.
• Phosphate-coated and painted for corrosion resistance.
• Dynamically balanced for smoother and reliable operation.

Product Highlights

The sheave's construction provides increased tensile strength and longevity in operation.

Product Information

Standard Information

• Manufacturer Part Number: BK95H
• Material: Cast Iron

Technical Specifications

• Mounting: Shaft
• Family / Style: Masterdrive
• Outside Diameter: 9.25 inches
• Pitch Diameter for 4L/A Belts: 8.50 inches
• Pitch Diameter for 5L/B Belts: 8.90 inches
• Pulley Type: 3
• Overall Length: 1-9/16 inches
• Width: 7/8 inches
• Length: 1-1/4 inches
• Pitch: 1/2 inches
• Dimension C: 1/16 inches
• Dimension X: 7/8 inches
• Dimension G: 7/16 inches
• Dimension E: 3/16 inches
