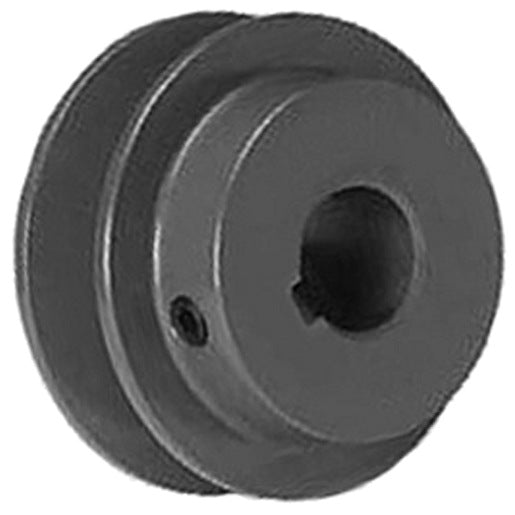

POWER DRIVE BK80-1-1/8 V-BELT PULLEY 1 GROOVE 1-1/8 BORE CAST IRON SHEAVES

Product Description

The POWER DRIVE BK80-1-1/8 is a transmission pulley designed for efficient power transfer. This component features a bore size of 1-1/8 inches and includes a single groove. It measures seven and three-quarters inches in outside diameter and has a finished bore. This pulley is compatible with 4L, A, 5L, and B belt series.

• 1-1/8 inch bore size
• Single groove design
• Compatible with multiple belt series including 4L, A, 5L, and B

Product Highlights

The POWER DRIVE BK80-1-1/8 pulley is suitable for various industrial applications requiring reliable transmission of power.

Product Information

Standard Information

• Brand: POWER DRIVE
• Manufacturer: POWER DRIVE LLC

Technical Specifications

• MPN: BK80-1-1/8
• Weight: 4.4 lbs
• Outside Diameter: 7.75 inches
• Minimum Pitch Diameter: 7 inches
• Maximum Pitch Diameter: 7.4 inches
• Belt Width Minimum: 0.5 inches
• Belt Width Maximum: 0.656 inches
• Keyway: Yes
