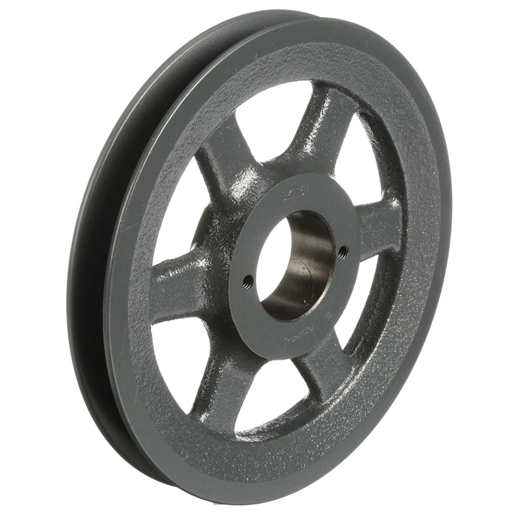

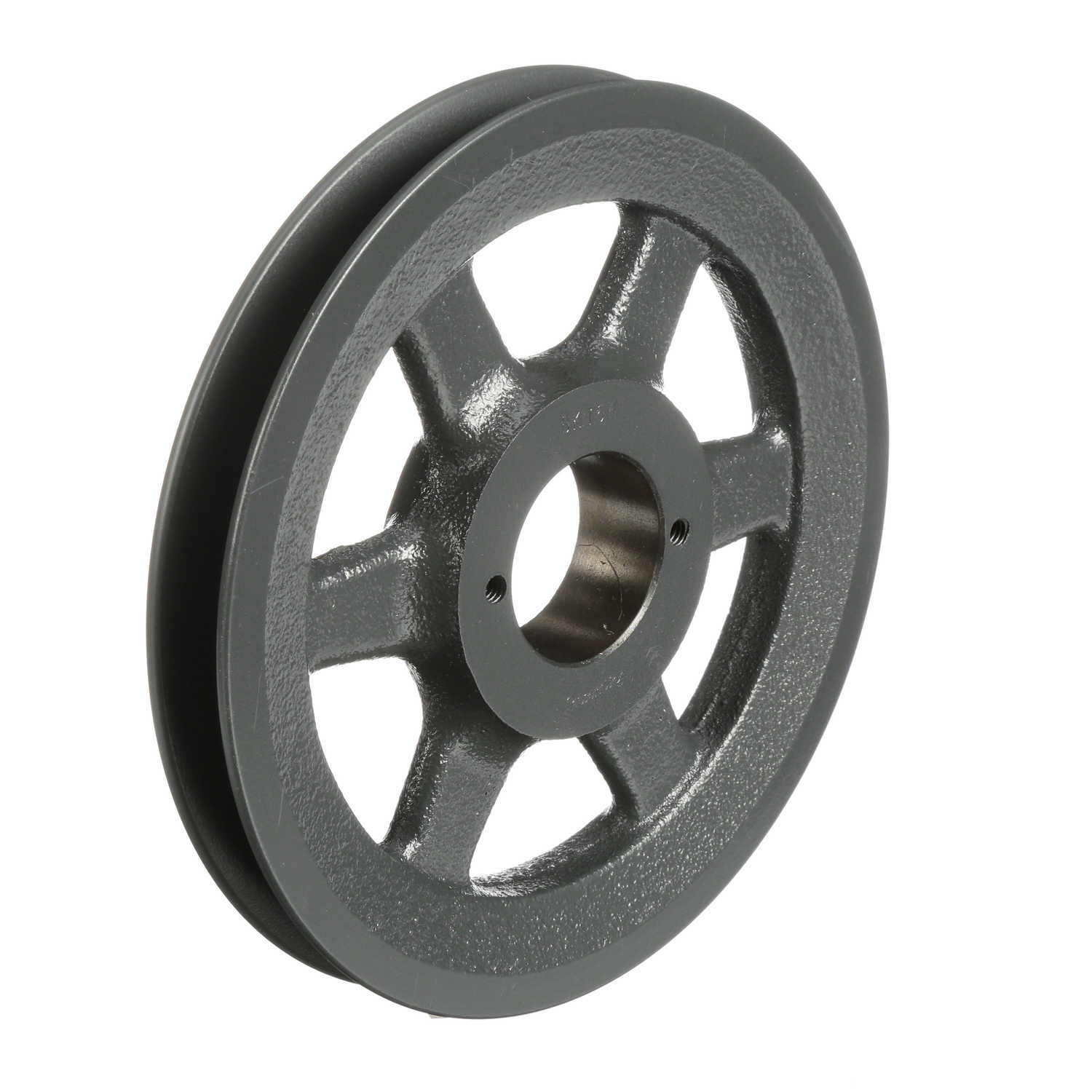

POWER DRIVE BK75H Single Groove V-Belt Pulley

Product Description

The POWER DRIVE BK75H is a single groove pulley suitable for power transmission applications. Made from cast iron, it has an outside diameter of seven point twenty-five inches. The pulley works with A (four L) and B (five L) V-belts and requires an H-style bushing, sold separately, which accommodates a bore range of three eighths to one and one-half inches. Keyways may be included based on the bore size.

• Single groove design for V-belt compatibility.
• Constructed from cast iron for durability.
• Requires H-style bushing for installation (sold separately).

Product Highlights

This pulley is ideal for various power transmission setups, ensuring reliable performance and compatibility with standard V-belts.

Product Information

Standard Information

• Brand: POWER DRIVE
• MPN: BK75H

Technical Specifications

• Material: Cast Iron
• Outside Diameter: 7.25 inches
• Groove Type: Single Groove
• Number of Grooves: 1
• Mounting Method: Bushed
• Bushing Size: H
• Belt Series: 4L | A | 5L | B
• Keyway: Yes
• Pitch Diameter Minimum: 6.5 inches
• Pitch Diameter Maximum: 6.9 inches
• Bushing Bore Range: 3/8 to 1-1/2 inches
