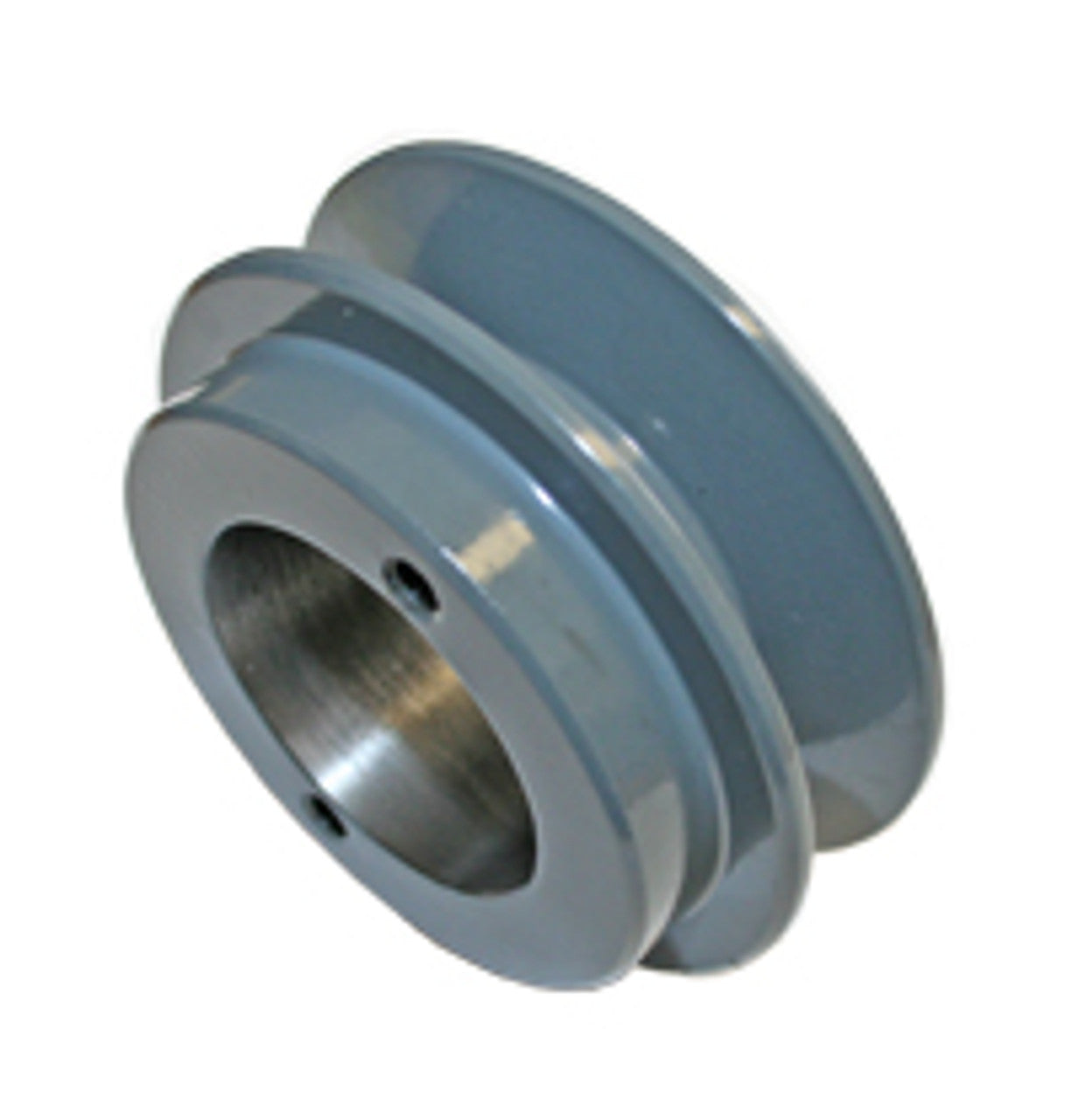

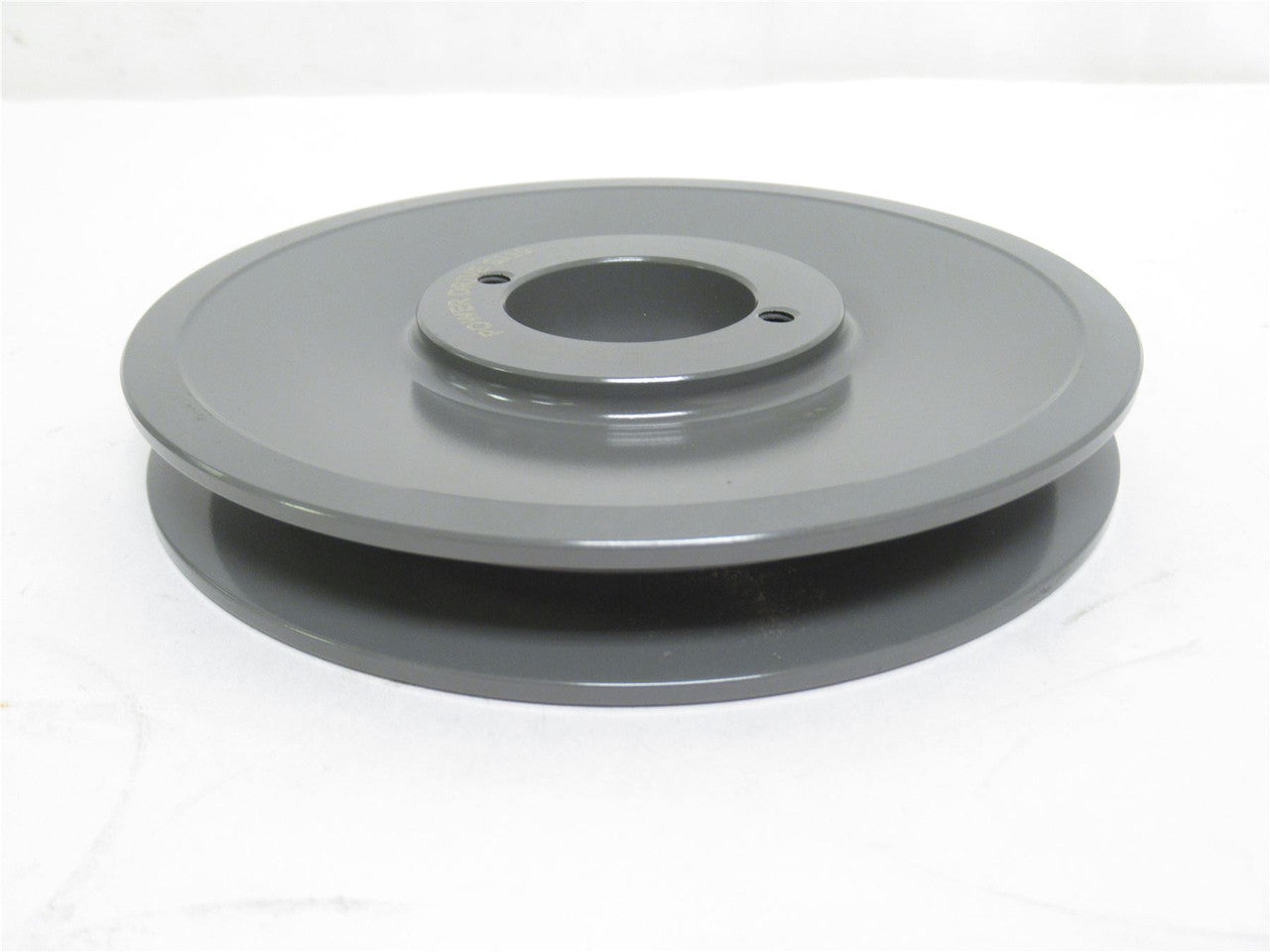

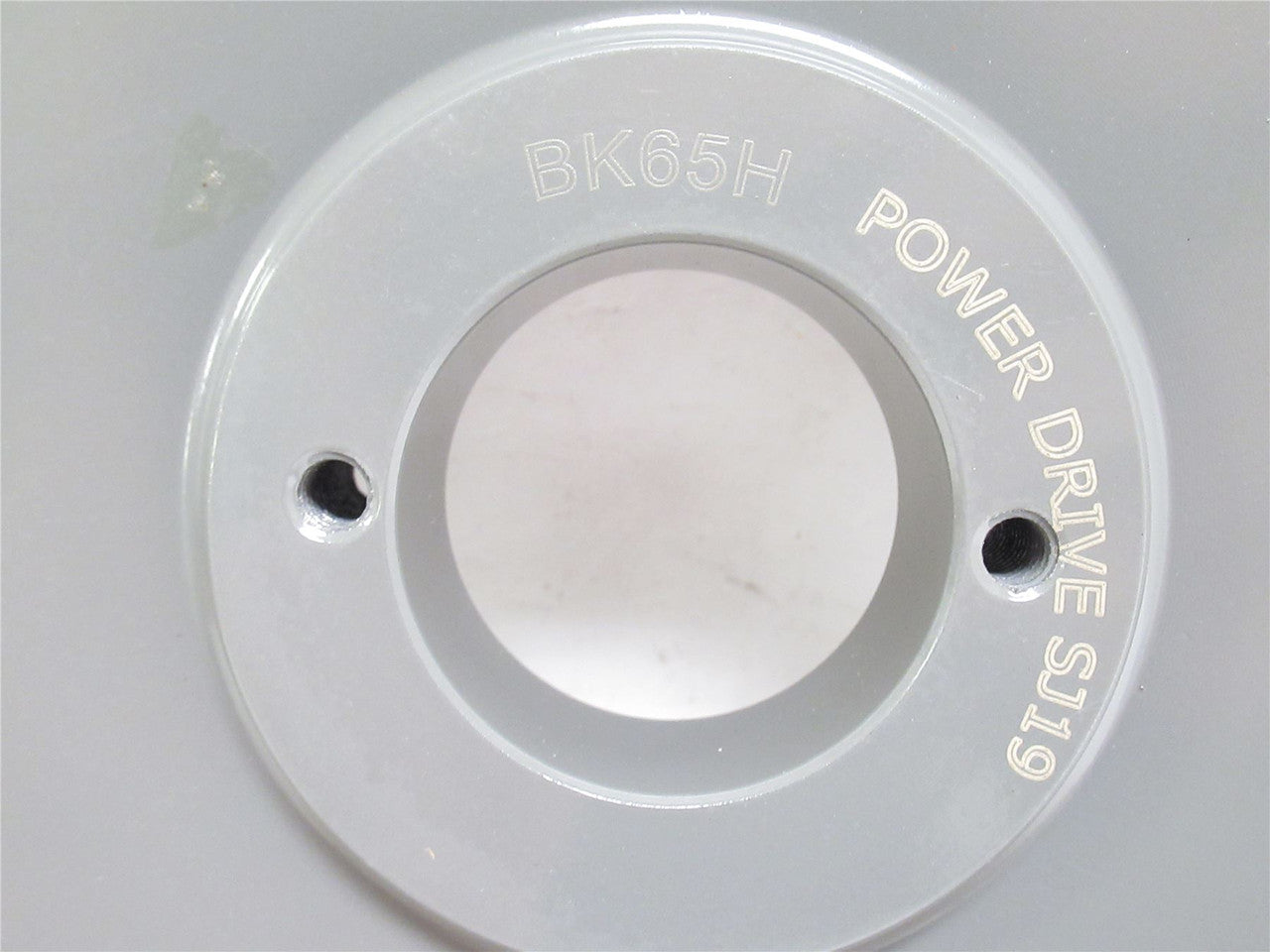

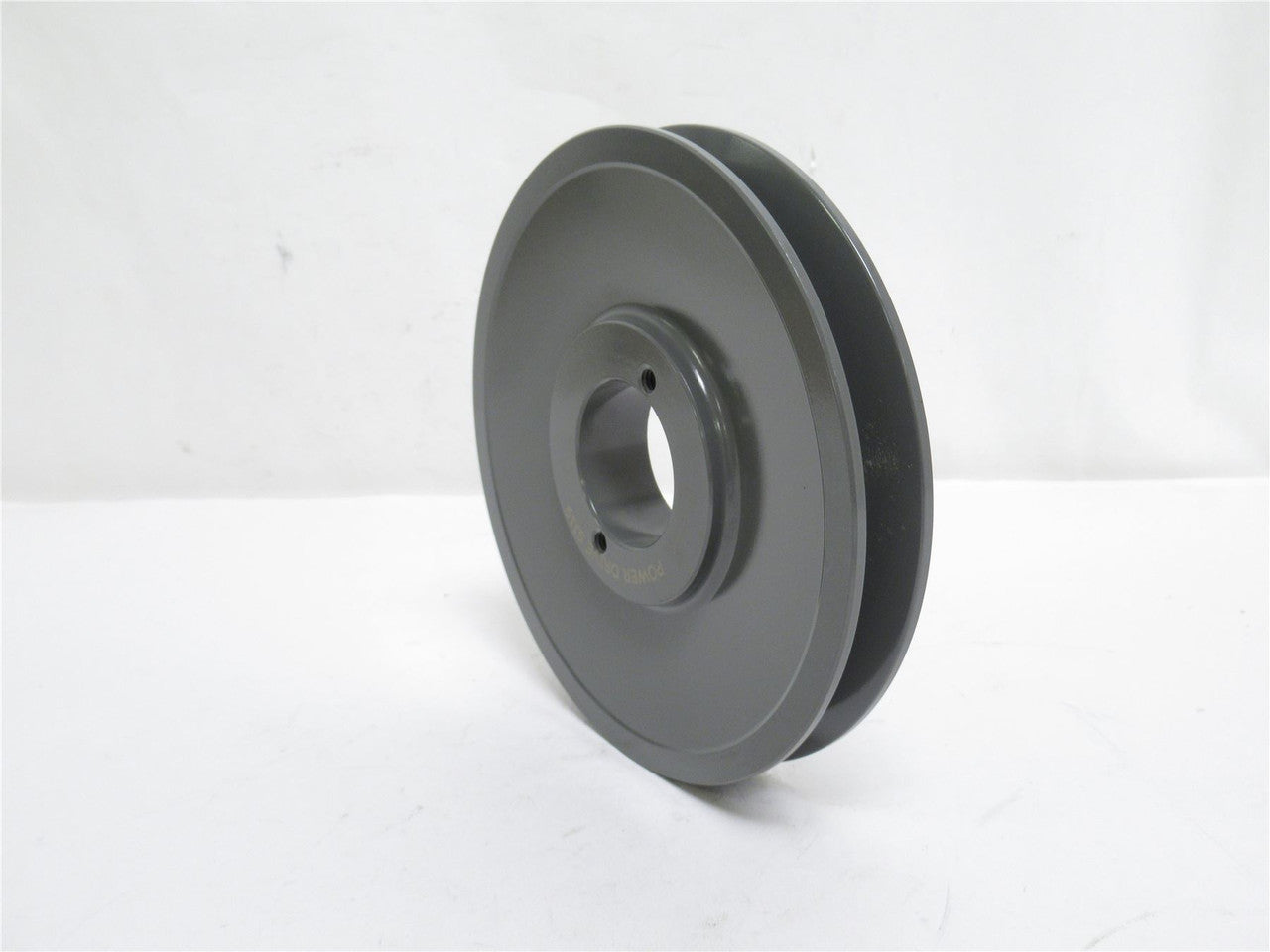

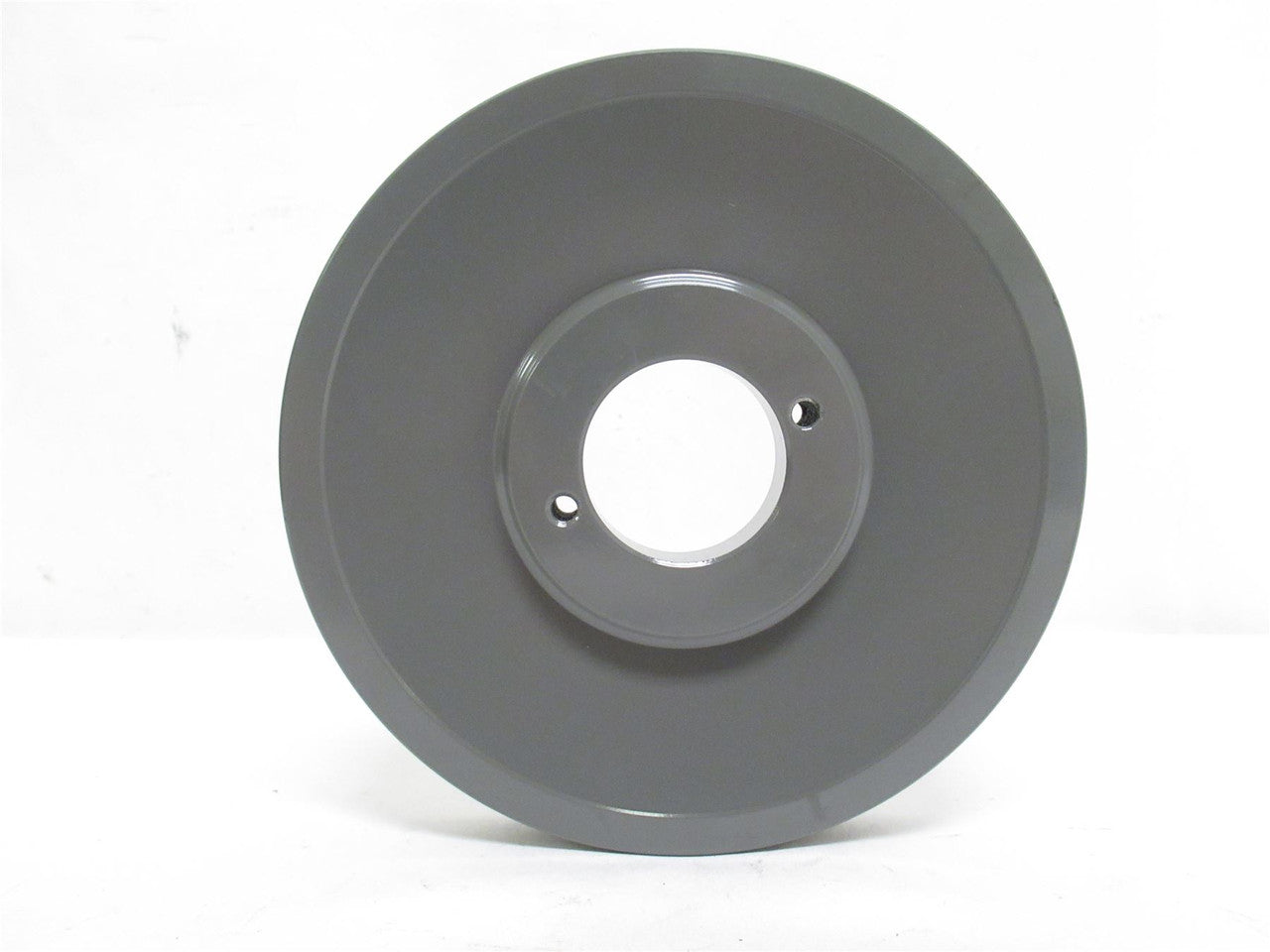

Power Drive BK65H V-Belt Pulley

Product Description

The Power Drive BK65H is a V-belt pulley suitable for power transmission tasks. This product features a single groove for efficient belt operation and is made from durable cast iron. With an outer diameter of six point two five inches, it is built for use with H series bushings. The pulley accommodates various belt types including 4L, A, 5L, and B belts. Note that bushings are not included.

• Single groove design
• Constructed from cast iron
• Compatible with H series bushings

Product Highlights

This pulley is ideal for applications requiring reliable power transfer with minimal slip.

Product Information

Standard Information

• Brand: Power Drive
• MPN: BK65H

Technical Specifications

• Outside Diameter: 6.25 inches
• Number of Grooves: 1
• Material: Cast Iron
• Bushing Size: H
• Belt Series: 4L, A, 5L, B
• Keyway: Yes
• Bushing Bore Range: 3/8 to 1-1/2 inches
• Pitch Diameter Minimum: 5.5 inches
• Pitch Diameter Maximum: 5.9 inches
• Length: 1.5 inches
• Shipping Weight: 2.85 lbs
• Belt Width Minimum: 0.5 inches
• Belt Width Maximum: 0.656 inches
