Power Drive BK62-7/8 V-Belt Pulley

Product Description

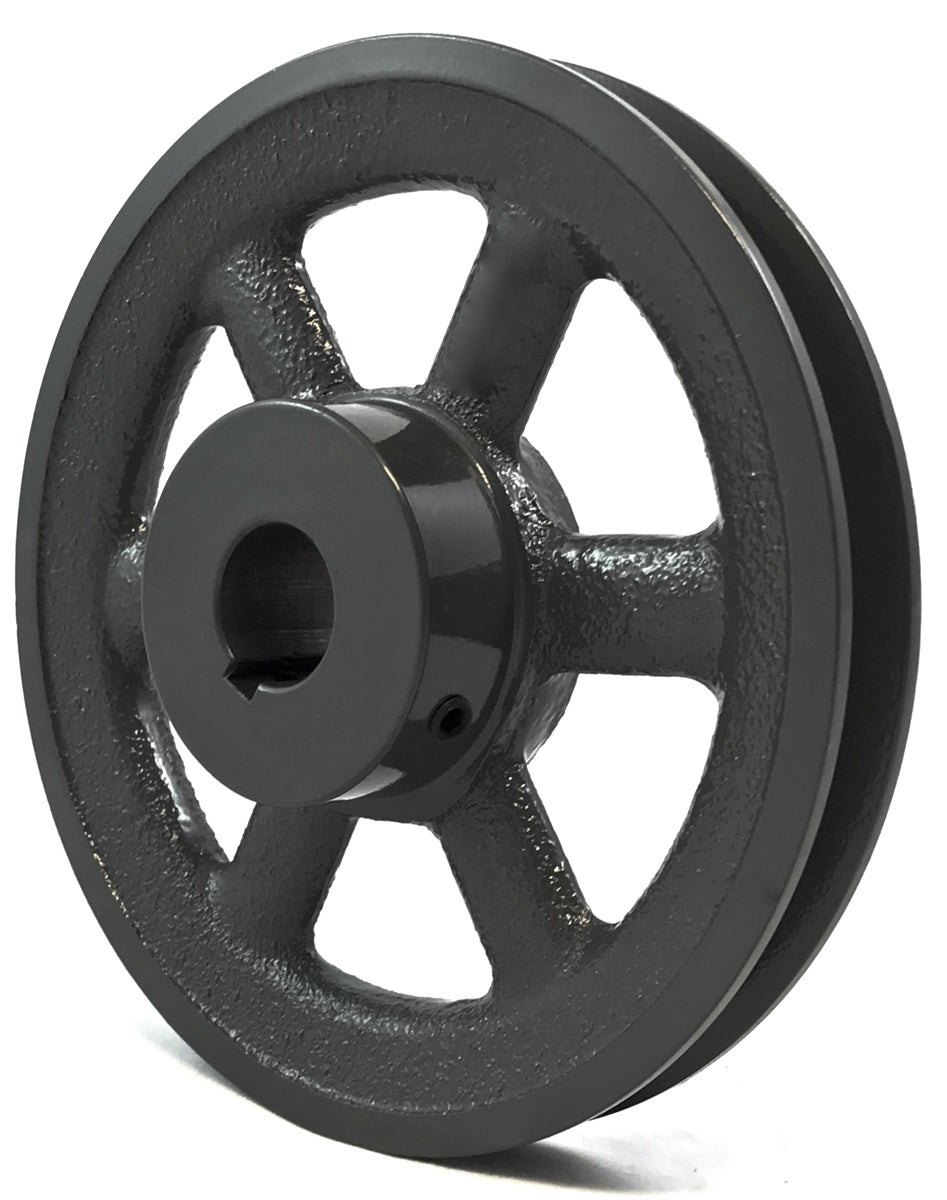

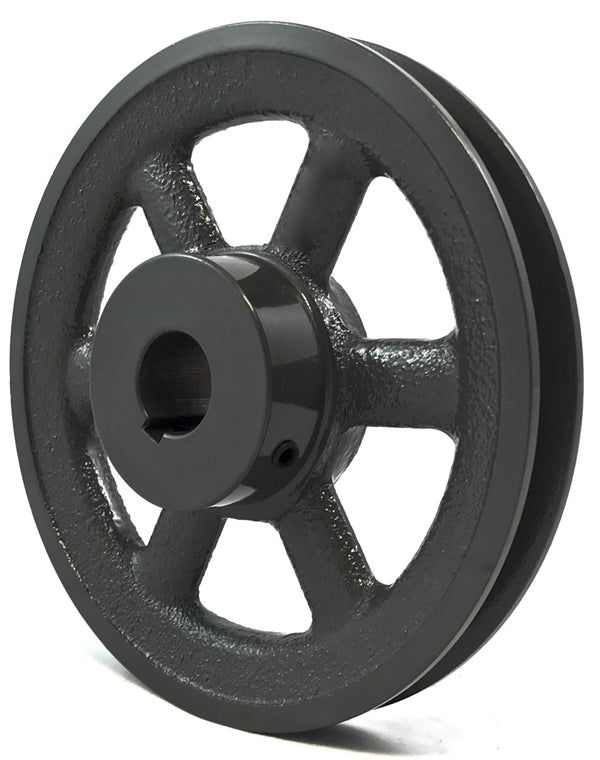

The Power Drive BK62-7/8 is a V-belt pulley. It is made for use with A, 4L, B, 5L, AX, BX, AA, and BB belts. This pulley has a bore size of seven-eighths inches and an outer diameter of five point nine five inches. It is made from grade thirty-five cast iron, which is known for its strength and durability. For protection against corrosion, the pulley is phosphate coated and painted.

• Compatible with A, 4L, B, 5L, AX, BX, AA, and BB belts
• Features a bore size of seven-eighths inches
• Constructed from grade thirty-five cast iron

Product Highlights

This pulley is designed to be dynamically balanced for smooth operation. The manufacturing process follows the ARPM Standard IP20, ensuring reliability in various applications.

Product Information

Standard Information

• MPN: BK62-7/8
• UPC: 685650070513

Technical Specifications

• Pulley Size: BK62
• Bore Size: 7/8 inches
• Outside Diameter (O.D.): 5.95 inches
• Pitch Diameter for 4L/A Belts (P.D.): 5.20 inches
• Pitch Diameter for 5L/B Belts (P.D.): 5.60 inches
• Key-Way Size: 3/16 x 3/32 inches
• Weight: 2.4 lbs
• Dimension (F): 7/8 inches
• Dimension (L): 1-5/32 inches
• Dimension (P): 13/32 inches
• Dimension (C): 1/8 inches
